What Is a Wax Melting Tank? A Complete Science-Based Guide for Candle Makers

Before a candle is poured, scented, dyed, or packaged, something essential must happen first:

solid wax must be melted safely, evenly, and efficiently.This is where the Wax Melting Tank comes in — a device that looks simple on the outside, but actually combines thermal engineering, material science, and smart temperature control. If you’ve ever wondered how candle factories melt large volumes of wax without overheating, burning, or causing inconsistencies, this guide will give you a clear and easy-to-understand overview.

What Exactly Does a Wax Melting Tank Do?

At its core, a wax melting tank is used to:

• Melt solid wax into liquid

• Maintain the wax at a stable pouring temperature

• Prevent overheating and scorching

• Improve production efficiency

• Ensure safety during large-volume melting

It is a key piece of equipment in candle factories, skincare production, aromatherapy manufacturing, and other industries that use wax or wax-like substances.But its job is more complex than simply “heating wax.”

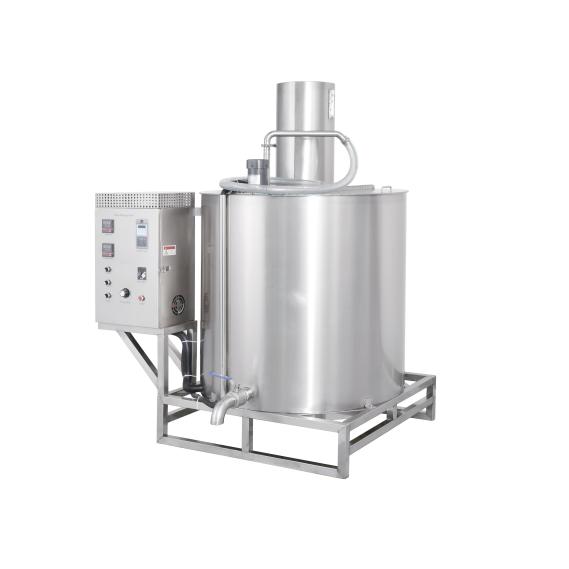

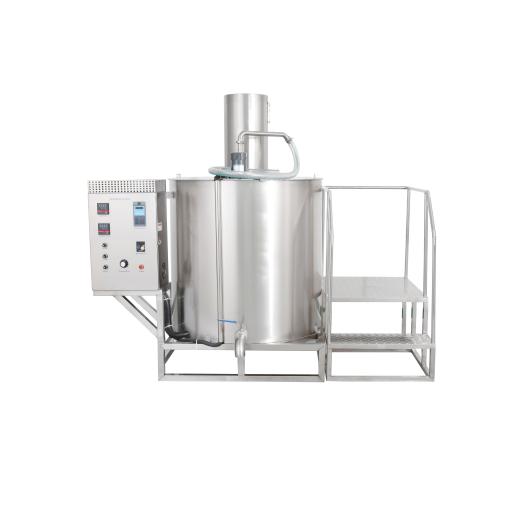

 How Is a Wax Melting Tank Built? (The Science Inside)

Despite its simple appearance, a wax melting tank contains several engineering components that work together to melt wax safely and evenly.

 Double-Jacket Heating Structure

This is the most important feature.

The tank has two layers:

• Inner tank: holds the wax

• Outer jacket: holds water or thermal oil

Heating elements warm the outer jacket, and the heat is transferred to the wax indirectly.

Why indirect heating?
Because wax burns easily. Direct heat can cause:

• Scorching

• Color changes

• Smoke

• Burning smell

The double jacket works like a “bain-marie” or water bath — gentle, even, and controlled.

Stainless Steel Construction (304 / 316)

 High-quality wax melting tanks use:

• 304 stainless steel inner tank for hygiene and heat resistance

• 201 or 304 stainless steel shell for structure

This ensures the wax stays clean, odor-free, and contamination-free.

Thick Thermal Insulation

A high-temperature insulation layer wraps around the tank.
Its functions:

• Reduce heat loss

• Maintain temperature stability

• Protect operators from burns

• Save energy

Temperature Sensors + Digital Control Panel

Most tanks use dual sensors:

• One monitors the jacket temperature

• One monitors the wax directly

The controller maintains consistent heat within ±1°C of the set temperature — crucial for fragrance retention and preventing wax discoloration.

Conical Bottom for Complete Drainage

A cone-shaped bottom allows wax to drain fully without leaving hardened residue.
This design:

• Saves material

• Makes cleaning easier

• Improves batch consistency

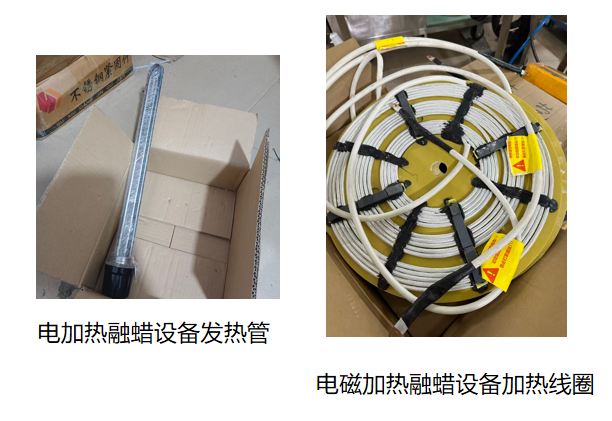

• The Two Main Heating Methods Explained

Wax melting tanks typically use either electric heating or induction heating.

Electric Heating (Indirect)

Heating tubes warm water or oil in the jacket, which then melts the wax.

Pros:

• Gentle heating

• Lower equipment cost

• Suitable for 10–300 L tanks

Ideal for soy wax, paraffin, beeswax, and most standard applications.

 Induction Heating (Electromagnetic)

Electromagnetic coils heat the stainless steel inner tank directly.

Pros:

• 3–5× faster heating

• More energy-efficient

•


• Great for large tanks (300–2000 L)

• Greater temperature stability

Many modern automatic candle production lines prefer induction heating.

What Types of Wax Can It Melt?

 A wax melting tank is compatible with nearly all wax types:

• Paraffin

• Soy wax

• Beeswax

• Coconut wax

• Palm wax

• Gel wax

• Blended wax formulations

Each wax type has a different melting point:

	Wax Type	Melting Range
Paraffin	56–62°C
Soy Wax	50–70°C
Beeswax	62–65°C
Gel Wax	95–110°C

A stable, precise heat source is essential for protecting fragrance oils and achieving smooth finishes.

Benefits of Using a Wax Melting Tank

Compared to stovetop melting or single-pot heaters, a wax melting tank offers major advantages:

✔ No burning or scorching

Indirect heat prevents wax from overheating.

✔ Higher efficiency

Melt dozens or hundreds of liters at once.

✔ Better temperature accuracy

Improves fragrance stability and prevents color shifts.

✔ Safer operation

No open flames or risky heating methods.

✔ Supports automated production

Can pump wax directly into filling machines.

 How to Choose the Right Wax Melting Tank

Before purchasing, consider:

• Your Production Volume

• Small studios: 10–50 L

• Small factories: 100–200 L

• Medium factories: 300–500 L

• Large-scale plants: 1000–2000 L or customized

• Heating Method

Electric heating → Lower cost

Induction heating → Higher efficiency

 Do You Need a Mixer?

• Mixing helps evenly distribute:

• Dyes

• Fragrance oils

• Heat

• Great for large batches.

 Do You Need a Wax Pump?

• Essential for feeding:

• Filling machines

• Holding tanks

• Piping systems

•  Voltage Requirements

Industrial tanks may require 220V or 380V.
Matching voltage is crucial.

Role of Wax Melting Tanks in Modern Candle Factories

 In automated candle production, the wax melting tank is the very first step.
It supplies consistently melted wax to:

• Storage tanks

• Mixing systems

• 12-nozzle filling machines

• Automated pouring lines

• Cooling conveyors

If the wax is not melted correctly, the entire line is affected.
In other words:

A high-quality candle begins with high-quality melted wax.

Conclusion: The Science Behind Every Candle Begins Here

A wax melting tank is not just a container — it is a carefully engineered system that shapes the foundation of candle quality.
By melting wax safely, evenly, and efficiently, it ensures every candle begins with the perfect liquid base.

Whether you produce 50 candles a day or 5,000, a reliable wax melting tank helps you scale production, stabilize quality, and operate more safely.

It is the quiet scientist behind every beautiful candle.
