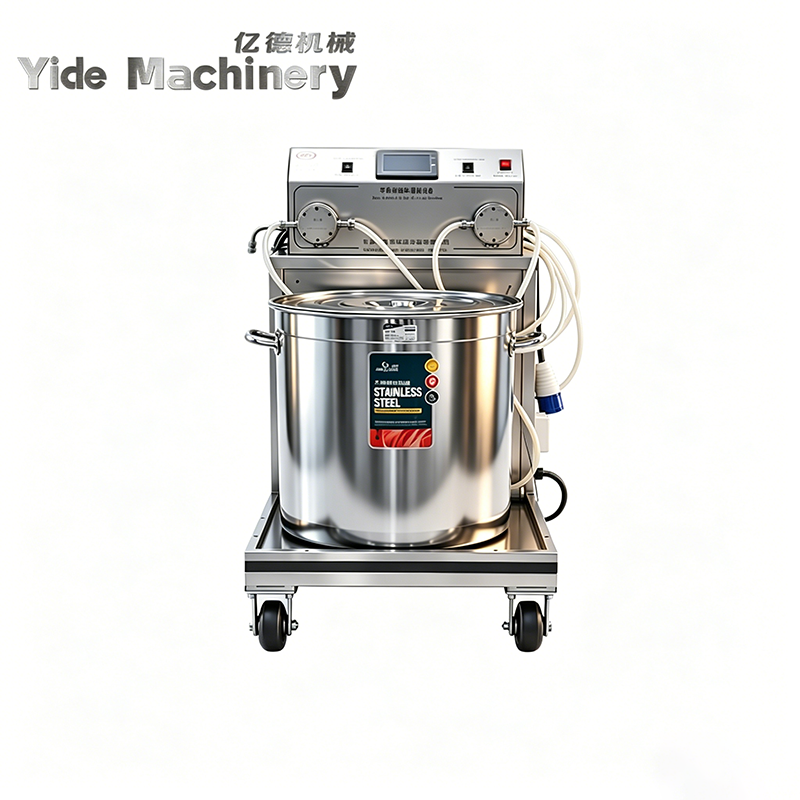

YD-3.5-I Wax Melting And Filling Machine

Stop Wasting Time on Clogged Pumps and Inaccurate Fills! For scented candle manufacturers, the biggest nightmare is wax solidification in the machine and inaccurate dosing that wastes expensive fragrances. The Yide YD-3.5-I is engineered to solve these pain points. Unlike cheap competitors that use plastic pumps and lack proper heating, our machine features a full-linkage heating system and industrial-grade 304 stainless steel components, ensuring a smooth, non-stop production flow from the first drop to the last.

Model:
YD-3.5-I
Brand:
YD

Availability:

Quantity:



Inquire Add to Basket

Product Description

Industrial-Grade 304 Stainless Steel Gear Pump
- Feature: High-torque pump head made entirely of food-grade 304 stainless steel.
- Benefit: Handles high-viscosity waxes with ease. Unlike plastic alternatives, it is corrosion-resistant, leak-proof, and offers a service life 5 times longer than standard pumps.
3.15KW Full-Linkage Smart Heating System
- Feature: Independent heating units for the hopper, pump body, and discharge pipe.
- Benefit: Ensures the wax remains liquid at all times. Zero clogging even after overnight pauses, allowing for immediate start-up and consistent flow regardless of ambient temperature.
Precision PLC Intelligent Control System
- Feature: Large color touch-screen interface with high-precision PLC logic.
- Benefit: Achieves a filling accuracy of ±1g. Easily store and switch between multiple recipes, drastically reducing raw material waste and labor costs.

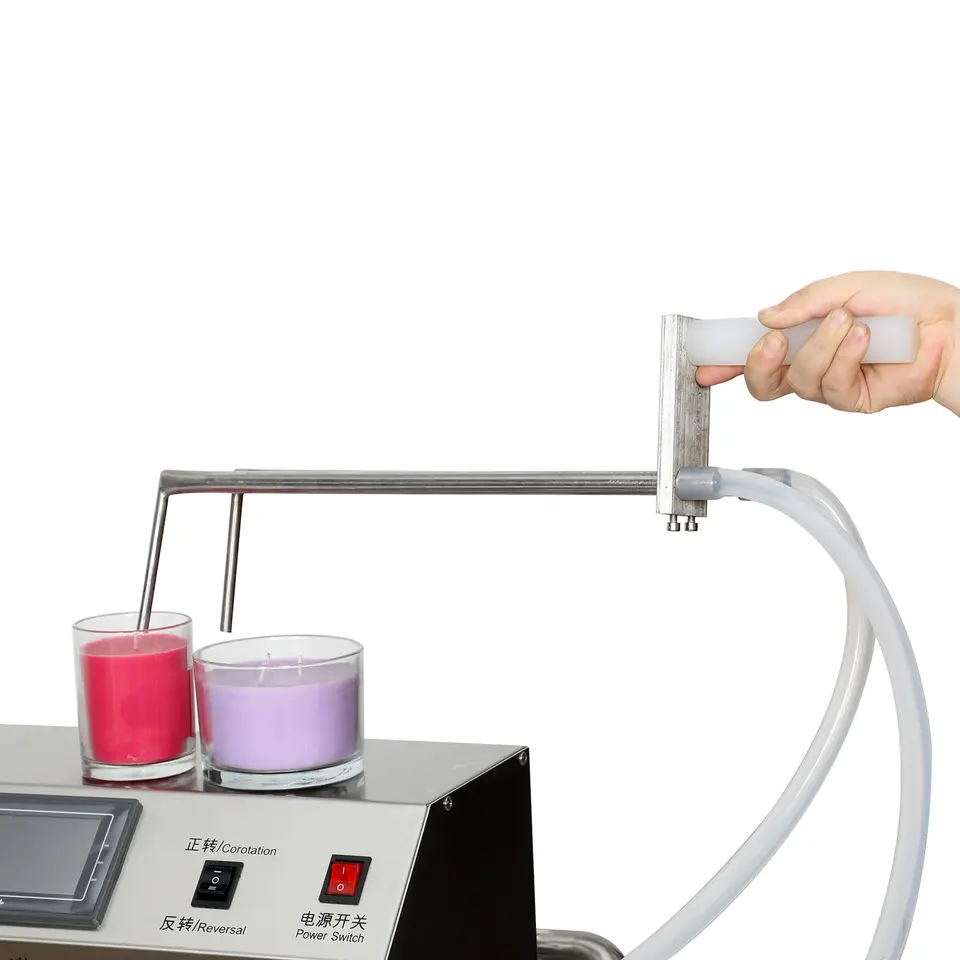

Anti-Drip 304 Precision Nozzle
- Feature: Micro-polished 304 stainless steel nozzle with specialized anti-drip technology.
- Benefit: Ensures a clean, vertical pour every time without hanging drops or messy residue. Keeps your glass jars and production environment pristine.
