100L Trolley Type Wax Melting Tank and Filling Machine

Trolley type melting and filling device is suitable for melt soy wax, paraffin wax and filling amount into candle container high accuracу.

It is double layer design and heating very safe and good warming performance.

The whole set is very tight design, so that is suggest for small production demand candle factory or just single type of color and fragrance application.

Compositions

The 100L Trolley Type Wax Melting Tank and Filling Machine is a complete set of two core components, plus essential accessories to support full-cycle operation:

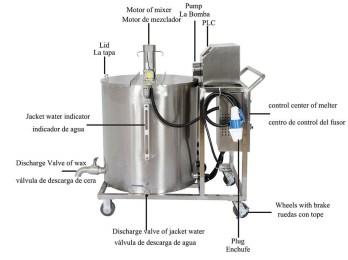

100L Trolley-Type Wax Melting Tank: With a capacity to hold at least 100kg of wax, it features a double-layer jacket design (inner tank SUS304, outer tank SUS201, both 2mm thick) for even heating. It includes a speed-adjustable mixer (to ensure uniform wax temperature and faster cooling to filling temp), two temperature sensors (for wax and jacket, 0-120°C adjustable), and brake-equipped wheels for easy movement.

Double Heat Gear Pump Filling Machine: Made of corrosion-resistant materials (body SUS201, gear pump SUS316), it uses a PLC touch screen for intuitive control. It supports pumping, pump reversing (to prevent wax blockage), and adjustable pump heating (0-100°C), with a filling volume range of 1-500g and a max flow rate of 6L/min per pump.

Accessories: 1 remote controller, 2 filters, 6 meters of tubing, 2 filling nozzles, 1 spare filter net, and 1 power wire—everything needed to start operation right out of the box.

How to Fill

Using the 100L Trolley Type Wax Melting Tank and Filling Machine follows a clear, step-by-step process to ensure precision and safety:

Pre-Operation Preparation: Add water or conduction oil to the melting tank’s jacket (ensure water level meets requirements). Connect silicon tubes, filling nozzles, and filters (test filters in water first), then use the pump reversing function to empty air bubbles from the tubes.

Melting Tank Setup: Turn on the power switch, set the wax melting temperature via the PLC touch screen (match the wax’s melting point), and start the mixer (adjust speed on the control box) to heat wax evenly. Once melted, switch to one heater to keep wax warm.

Filling Parameter Setting: On the PLC’s operation screen, set the filling volume (e.g., 100g for Pump 1 and Pump 2) and interval time (stop time between fillings, e.g., 2.00s). Calibrate the machine using a 0.01g-accurate scale to ensure ±0.5g precision.

Start Filling: Line up the candle jars, press the start button or use the remote controller (unlock with the green key first), and the machine will fill automatically.

Post-Operation Cleanup: After filling, use the pump reversing function to empty wax from tubes and the pump, then turn off the power.

Sell Point

What makes this machine stand out for candle makers? These key advantages address real pain points in production:

High Mobility & Space-Saving: Trolley design with brake-equipped wheels lets you move it anywhere in the workshop—perfect for small spaces. For larger needs, Yide also offers stand/floor-type tanks (300L-2000L), but the 100L trolley balances capacity and flexibility.

Precision & Consistency: Dual temperature sensors (for wax and jacket) and PLC-controlled filling ensure stable wax temperature (over 75°C for accuracy) and adjustable filling volumes (1-500g). The SUS316 gear pump resists corrosion, avoiding wax contamination.

Easy Maintenance & Durability: Made of food-grade SUS304 (inner tank) and SUS201 (outer parts), it's easy to clean—pump reversing prevents wax blockage, and the mixer’s bottom-up operation reduces residue. It also comes with a 1-year warranty for peace of mind.

Cost-Effective & User-Friendly: Competitive pricing with no compromise on quality; the PLC touch screen (supports Chinese/English) and remote control make operation simple—no professional skills required. It also uses energy-efficient heating (220V/110V optional), cutting long-term costs.

Conclusion

The 100L Trolley Type Wax Melting Tank and Filling Machine from Dongguan Yide Machinery is more than just equipment—it's a solution that streamlines candle production, from melting to filling. Its mobility, precision, and durability make it ideal for both new artisans and growing businesses, while the CE certification and 10-year brand expertise ensure reliability. Whether you’re making pillar candles, jar candles, or custom designs, this machine takes the hassle out of production, letting you focus on creativity and scaling your brand. If you’re looking to upgrade your candle-making setup, this all-in-one machine is a smart, long-term investment.
