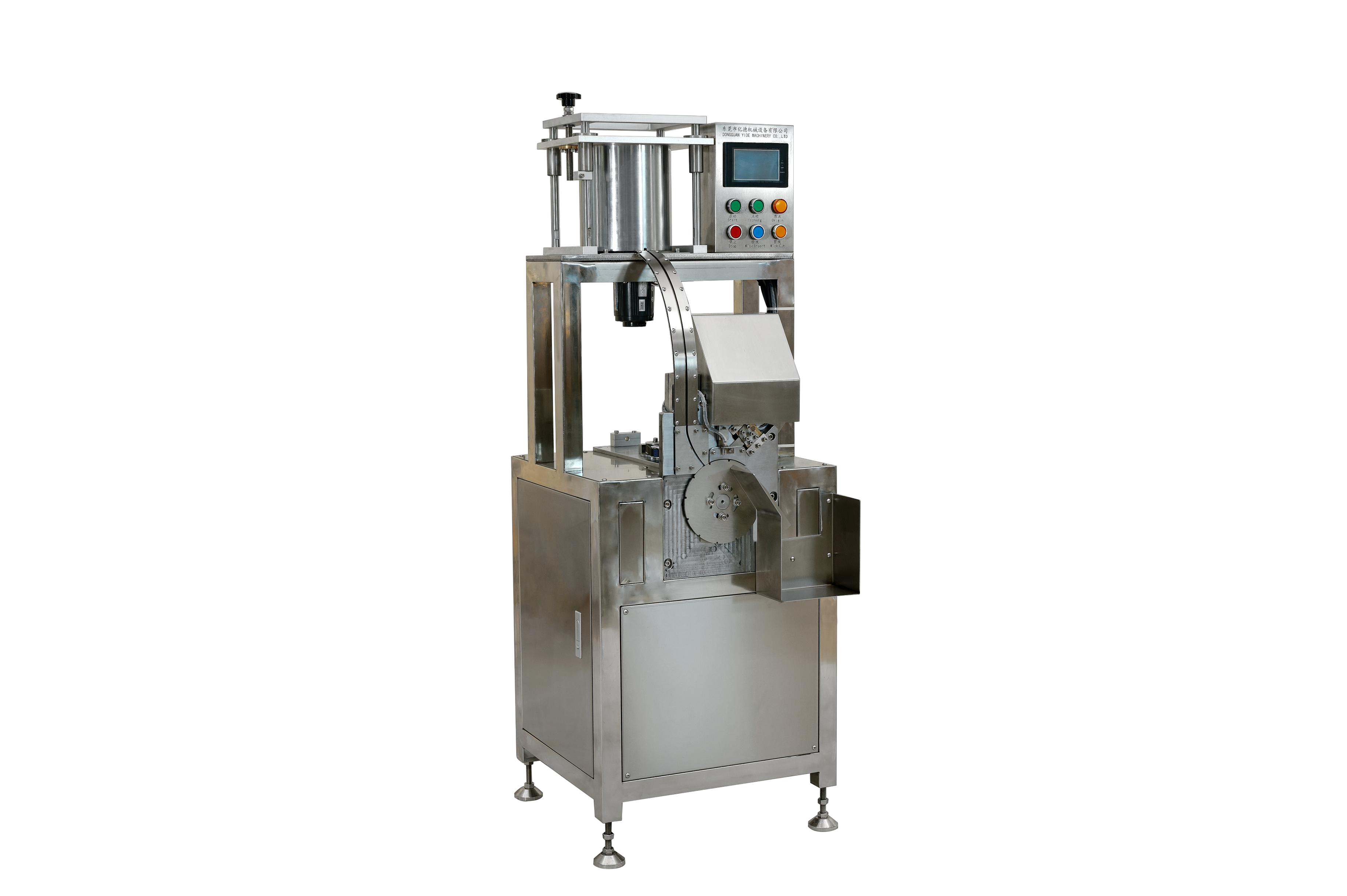

Boost Your Wax-Making Efficiency with the YD-09 Intellectual Wax Thread Cutting Machine

As a foreign trade professional specializing in industrial equipment, I’ve witnessed firsthand how the right machinery can transform a wax-making business—turning slow, manual processes into streamlined, high-output operations. Today, I want to shine a spotlight on a game-changing tool for wax manufacturers: the YD-09 Intellectual Wax Thread Cutting Machine from Dongguan Yide Machinery Co., Ltd. This machine isn’t just another piece of equipment; it’s a solution designed to solve common pain points in wax production, from inconsistent thread lengths to frequent downtime. Let’s dive into why it’s become a top choice for businesses worldwide.

Why the YD-09 Stands Out for Wax-Making Enterprises

Wax products—whether for candles, crafts, or industrial use—rely on precise wax thread cutting to ensure quality and uniformity. Traditional cutting methods often fall short: manual trimming is time-consuming and error-prone, while basic machines lack flexibility and smart controls. The YD-09 addresses these issues head-on with its blend of intelligence, efficiency, and ease of use.

First, let’s talk about its core design philosophy: putting control in the hands of operators while minimizing human error. Equipped with a touch screen and microcomputer control system, the machine eliminates guesswork. Every key parameter—from wax thread length to production counts—can be displayed and adjusted directly on the screen. This means no more fumbling with dials or manual calculations; even new operators can master it in minutes.

What truly sets it apart, though, is its automatic protection and efficiency features. If the machine starts but fails to produce any products within a minute, it shuts down automatically—preventing wasted energy and potential damage. For high-volume production, this peace of mind is invaluable. Imagine running a shift without constantly checking if the machine is stuck or underperforming; the YD-09 lets you focus on other tasks while it handles the cutting process reliably.

Key Technical Parameters: Built for Versatility and Output

To understand if a machine fits your business, you need hard data—and the YD-09’s specs are tailored to meet the needs of most wax-making scenarios. Let’s break down the critical details:

Model: YD-09 (the industry identifier for this high-performance cutter).

Size and Weight: With external dimensions of 500mm × 450mm × 1300mm and a weight of 118kg, it’s compact enough to fit in most workshops without sacrificing stability. Unlike bulky industrial machines that require dedicated floor space, the YD-09 can integrate into existing production lines seamlessly.

Power Requirements: It runs on a single-phase 220V 50Hz power supply (total electrical power: 1500W)—compatible with standard electrical systems in most countries. This eliminates the need for expensive electrical upgrades, a common barrier for small to mid-sized businesses.

Wax Compatibility: The machine accommodates wax holders of two sizes (Φ12×4.0mm and Φ14×4.0mm) and wax thread diameters between 1.5mm and 2.5mm. Whether you’re making thin threads for small candles or thicker ones for industrial applications, it adapts easily.

Cutting Flexibility: Need different thread lengths? The YD-09 cuts anywhere from 17mm to 600mm—no tool changes required. This flexibility is a game-changer for businesses that produce multiple product lines. For example, if you switch from 50mm threads for tealight candles to 300mm threads for pillar candles, you can adjust the setting in seconds.

Output Capacity: It delivers up to 7000 pieces per hour, with output depending on thread length. For a medium-sized wax factory, this translates to thousands of finished products per shift—far more than manual cutting or basic machines can achieve. Even at maximum capacity, the machine maintains consistency, ensuring every thread meets your quality standards.

Safety First: Protecting Operators and Equipment

In any manufacturing environment, safety is non-negotiable—and the YD-09 is designed with multiple safeguards to prevent accidents and damage. Let’s walk through the key safety instructions (straight from the operation manual) that make this machine a responsible choice:

Pre-Operation Checks: Always read the instruction manual carefully before use and inspect components/protective devices to ensure they’re securely fastened. This simple step prevents loose parts from causing malfunctions during operation.

Work Surface Hygiene: Keep the area around the machine clean and free of debris. Wax shavings or tools left near the machine can cause jams or tripping hazards—small habits that add up to a safer workplace.

No Hand Contact with Moving Parts: Never stretch hands into the charging barrel, and if a wax holder gets stuck in the material path, do not touch it with your hands. The machine’s automatic stop function will halt operation when issues arise; let it cool down and follow the fault-clearing steps instead of risking injury.

Professional Maintenance Only: Non-professionals should never open the machine or control box. This protects both the operator (from electrical hazards) and the machine (from improper repairs that could void its performance).

These safety features aren’t just box-ticking exercises—they’re designed to keep your team safe and your machine running for years. In my experience, businesses that prioritize safety see fewer downtime incidents and lower long-term costs.

Installation, Operation, and Debugging: Simple for Every Team

One of the biggest concerns I hear from clients is: “Will this machine be hard to set up and maintain?” With the YD-09, the answer is a resounding “no.” Its installation and operation process is straightforward, even for teams without advanced technical skills.

Installation Steps (Quick and Painless)

1.Choose a level location for the machine (stability is key for precise cutting).

2.Adjust the four foot-screws at the bottom of the stand legs to level the machine—this takes just a few minutes with a spirit level.

3.Open the switch box and turn on the power. That’s it—no complex assembly or specialized tools needed.

Basic Operation: From Start to Finish

Once installed, operating the YD-09 follows a simple workflow:

1.Turn on the power and press the thread conveying button. Release the button once the wax thread passes through the outlet.

2.Press the thread cutting button to test the cut—this ensures the machine is calibrated correctly.

3.Set your parameters on the touch screen:

Wax Thread Length: Enter your desired length (e.g., 50mm) using the on-screen numeric keyboard, then press “ENTER.” The machine will cut to this length automatically.

Production Preset: Set how many pieces you need (e.g., 5000). The machine stops once it hits this number, preventing overproduction.

Single Counting and Total Output: Track production in real time—perfect for inventory management.

%1. Press the start button and hold it for 2 seconds. The charging hopper will feed wax holders into the material path, and the machine will begin cutting to your specifications.

Debugging: Keep It Running Smoothly

Even the best machines need occasional adjustments, and the YD-09 makes debugging easy. For example:

Crawl Operation: Use this mode for repairs or adjustments. Press the crawl button once, and the machine moves to its “original point” (indicated by a light). You can then adjust the wax holder taking roller by loosening its screws, aligning it with the outlet, and retightening—no technical expertise required.

Blade Replacement: Over time, cutting blades can dull. Simply remove the blade, sharpen it with a whetstone, and reattach it. When adjusting the new blade, position it 1mm from the outlet edge (for clean cuts) and tighten the locknut—done in minutes.

Impact Hammer Adjustment: The impact hammer clamps wax threads in place. If its tip wears down, loosen the locknut, adjust the screw to set a 6-7mm distance from the roller tank bottom, and relock. This ensures consistent clamping force.

Fault Clearing and Maintenance: Minimize Downtime

Downtime is the enemy of productivity—and the YD-09 is designed to keep it to a minimum. It has built-in fault detection that stops the machine automatically when issues arise (e.g., folded thread, stuck wax holders, low air pressure). The touch screen displays clear warning messages, so you know exactly what’s wrong—no guesswork.

Common faults and how to fix them:

Folded Thread: If wax builds up in the outlet or pipe, use the included plastic cleaning rod to dredge it. Cut the wax thread at the red copper pipe inlet, remove the thread, and push the cleaning rod through to clear wax residue.

Sensor Failure: The machine has three sensors with indicator lights. If a light isn’t on, check the 24V DC power supply, wire connections, or sensing distance. Adjust the distance or replace the sensor if needed—spare parts are easy to source from Dongguan Yide.

Maintenance is equally simple:

Add special lubricating oil to the thread cutting blade slipper every half month.

After 3-6 months of use, apply a small amount of lubricating grease to chains and gears.

Clean the machine surface regularly to prevent wax buildup.

These small, regular tasks extend the machine’s lifespan—most clients report using their YD-09 for 5+ years with minimal issues.

Why Choose Dongguan Yide Machinery Co., Ltd.?

The YD-09 is only as reliable as the company behind it—and Dongguan Yide Machinery has a reputation for quality and support. With years of experience in manufacturing wax-processing equipment, they understand the unique needs of international clients.

When you buy the YD-09, you get more than a machine:

Genuine Accessories: The packaging includes all essential parts (1 wick cutting machine, 1 adjustable wick hopper, 1 black power line)—no hidden costs or missing components.

Global Support: Their team can assist with installation questions, spare parts, and troubleshooting via phone (+86 0769 88389185) or email. As a foreign trade partner, I’ve seen their responsiveness firsthand—they prioritize resolving client issues quickly, even across time zones.

Compliance: The machine meets international safety and performance standards, making it easy to import and use in any country.

Final Thoughts: Invest in Efficiency

For wax-making businesses looking to scale, reduce errors, and cut downtime, the YD-09 Intellectual Wax Thread Cutting Machine is an investment that pays off. Its smart controls, versatile specs, and easy maintenance make it suitable for small workshops and large factories alike.

As a foreign trade salesperson，I’ve recommended this machine to clients in Europe, North America, and Southeast Asia—and the feedback is consistent: “It’s transformed our production line.” Whether you’re tired of manual cutting, struggling with inconsistent quality, or need to boost output, the YD-09 delivers.

Ready to learn more? Contact Dongguan Yide Machinery Co., Ltd. today at +86 0769 88389185 for a quote or to request a video demo. Let the YD-09 take your wax-making efficiency to the next level.
