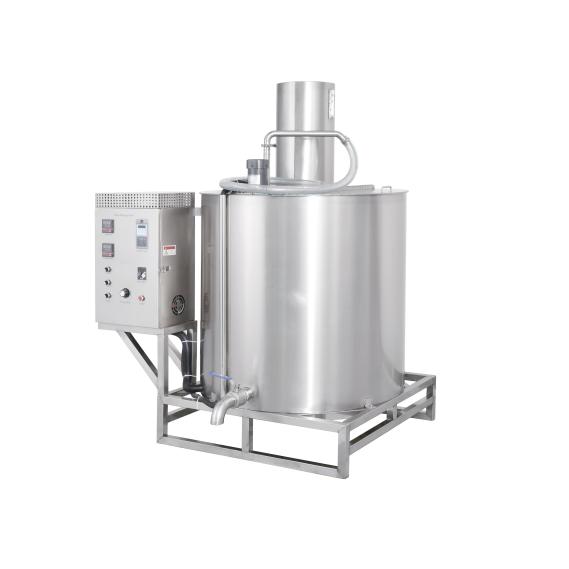

Boost Your Wax Processing Efficiency with the 500L Wax Melting Machine from Dongguan Yide Machinery

If you’re in the candle-making, cosmetics, or packaging industry—where precise wax melting and seamless material handling are make-or-break for production—you know how crucial it is to have reliable equipment. Today, we’re spotlighting a game-changer for wax processing: the 500L Wax Melting Machine from Dongguan Yide Machinery Co., Ltd., a trusted name in industrial machinery that blends speed, precision, and user-friendliness. Let’s dive into why this machine deserves a spot in your production line, how it works, and how it can elevate your operations.

Why the 500L Wax Melting Machine Stands Out

First, let’s talk about what makes this machine unique. Unlike traditional wax melters that rely on slow, uneven heating methods, the Yide 500L Wax Melting Machine uses electromagnetic induction heating—a technology that cuts down heating time drastically while ensuring consistent temperature distribution. No more waiting hours for wax to melt or dealing with hot spots that ruin batch quality.

Another standout feature is its efficiency. The temperature range spans 0–150°C, covering the needs of most wax types (from paraffin to beeswax). Plus, with a built-in pumping system, melted wax can be drained or transferred to your reactor in just 5–10 minutes—a massive time-saver for high-volume production. And let’s not forget the insulation: the tank’s jacket is lined with insulation cotton, which locks in heat, reduces energy waste, and keeps external surfaces safe to touch.

For businesses prioritizing safety and durability, this machine checks all the boxes. It has a maximum power of 20KW and a current rating of 30A, with a grounded design and anti-creeping protection (more on that later). The tank itself is built to hold 500L—perfect for medium to large-scale operations—and the mixer and pump are engineered to withstand heavy use without frequent breakdowns.

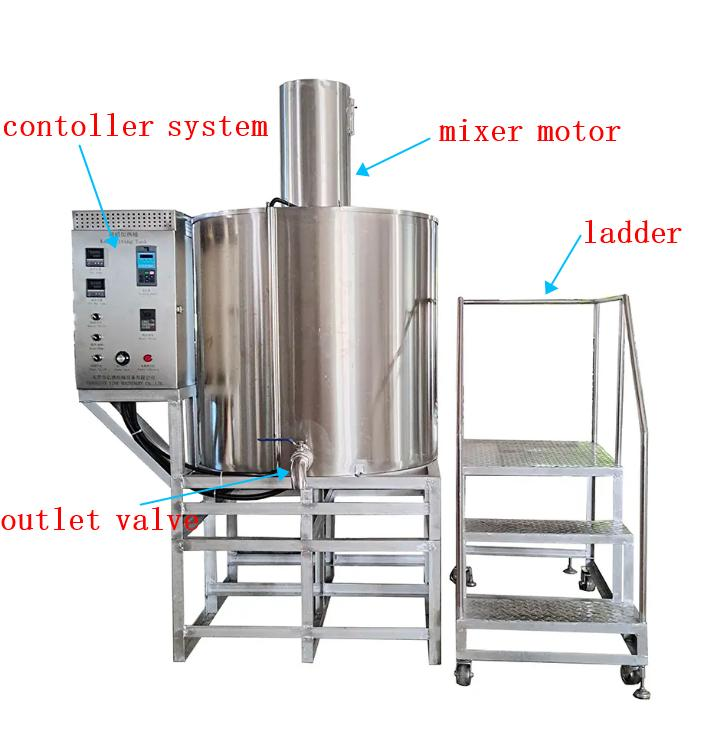

Key Components & What They Do

To get the most out of this machine, it’s helpful to understand its core components. Dongguan Yide has designed the system to be intuitive, even for operators new to industrial wax melters. Here’s a breakdown:

Wax Melting Tank (500L): The heart of the machine, where wax is loaded and melted. Its large capacity means fewer refills, while the electromagnetic heating element ensures fast, even melting.

Control Center: The brain of the operation, featuring a clear Display Panel that shows both the set temperature (for the heating element) and the actual wax temperature. You’ll also find:

Heater Switch: To start/stop heating.

Mixer Adjust: To control the speed of the mixer (critical for blending additives or ensuring uniform melting).

Mixer/Pump Button:A 3-way control for pumping wax out, pumping it back, or stopping the pump—ideal for precise material transfer.

Power Switch: Main on/off control, with an indicator light to confirm power supply.

Pumping System: A high-performance pump that runs at a maximum speed of 1400r/m, ensuring quick, steady wax transfer to your reactor or storage containers.

Ladder: Included for easy access to the top of the tank when loading wax or performing routine checks.

Step-by-Step: How to Use the Machine

One of the biggest advantages of the Yide 500L Wax Melting Machine is its simplicity. Even if you’re training a new team member, they’ll be up to speed in no time. Here’s the standard operating process:

Power Connection: First, connect the machine to a power source via the air switch. Important note: The maximum current required is 45A, so you’ll need a 10mm² cable. Also, the machine uses 380V 60Hz three-phase power—if your facility runs on 220V three-phase, simply connect it to a transformer (Yide recommends this for safety and performance).

Load Wax: Use the included ladder to add your wax (paraffin, beeswax, etc.) to the 500L tank. Avoid overfilling—leave a small gap to prevent overflow when the wax melts.

Set Temperature & Start Heating: Turn on the power switch, then use the control center to set your desired temperature (via “Set Temp” for the heating element and “Set Wax Temp” for the wax itself). Flip the Heater Switch to start heating. Critical safety tip: Do NOT turn on the mixer until the wax is fully melted—running the mixer through solid wax will burn out the motor.

Start Mixing: Once the wax is melted and flows smoothly, use the Mixer Adjust knob to set your desired speed, then turn on the mixer. This is great for blending in colorants, fragrances, or other additives evenly.

Transfer Wax: When the wax is ready, use the Mixer/Pump button to transfer it to your reactor: press “Pump out” to send wax to your equipment, “Pump back” to return excess wax to the tank, or “Stop pump” to halt transfer.

It’s that straightforward—no complicated programming or technical expertise required.

Maintenance: Keep Your Machine Running Like New

To ensure your 500L Wax Melting Machine has a long lifespan (Yide’s machines are built to last 5+ years with proper care), follow these simple maintenance steps:

Safety First: Always ensure the machine is properly grounded, and install an anti-creeping protection switch to prevent electrical hazards.

Long-Term Storage: If you won’t use the machine for an extended period (e.g., seasonal downtime), unplug the power cord and drain all remaining wax from the tank. This prevents wax from hardening and clogging the pump or heating element.

Routine Checks: Every few weeks, inspect the cable for damage, clean the Display Panel with a dry cloth, and check the mixer blades for wax buildup (wipe them down with a warm cloth if needed).

What’s Included in the Package?

When you order the 500L Wax Melting Machine from Dongguan Yide, you’ll get everything you need to start using it right away:

1 x 500L wax melting tank (with integrated mixer and pump)

1 x ladder (for easy tank access)

Warranty Card (keep this safe—more on warranty below)

Warranty & After-Sales Support

Dongguan Yide stands behind its products, and the 500L Wax Melting Machine comes with a comprehensive warranty. To claim warranty service, simply keep your invoice and Warranty Card (no replacements for lost or altered documents). When you need repairs or support, present these documents, and Yide’s team will assist you promptly.

The company also offers technical support via phone (+86 0769 88389185) for any questions—whether you’re troubleshooting a minor issue or need advice on optimizing your process.

Final Thoughts: Is This Machine Right for You?

If you’re tired of slow, inefficient wax melting that causes production delays or inconsistent batch quality, the 500L Wax Melting Machine from Dongguan Yide is the solution. It’s fast (thanks to electromagnetic heating), easy to use (intuitive controls), safe (grounded design, anti-creeping protection), and built for durability.

Whether you’re a candle manufacturer producing thousands of units monthly, a cosmetics brand making wax-based products, or a packaging company using wax for sealing, this machine will streamline your workflow and reduce waste. Plus, with Yide’s reliable after-sales support, you can invest with confidence.

Ready to boost your wax processing efficiency? Reach out to Dongguan Yide Machinery Co., Ltd. today via phone (+86 0769 88389185) to learn more or request a quote. Your production line will thank you!
