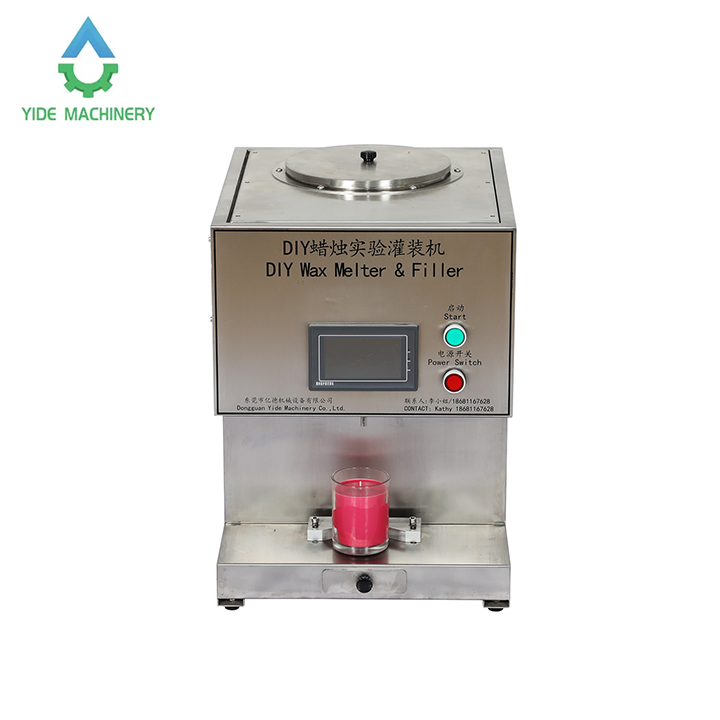

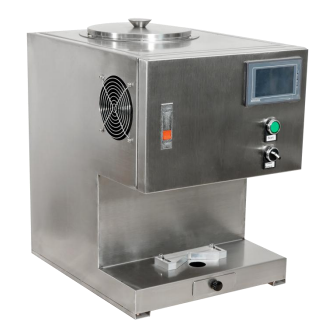

Introduction to DIY Filling Machine

DIY making machine is design small in size and 2 in 1 function of wax melting and filling.

It desktop type that suitable for home, office, testing room use.

Ideal choose for DIY making scent candles.

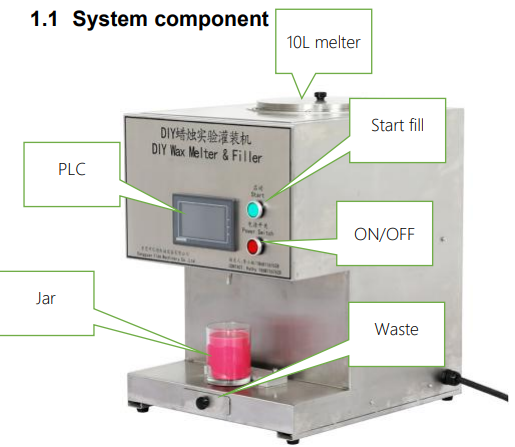

Compositions

The core system of this filling machine consists of 6 key components, which work together to ensure a stable and smooth filling process:

10L Wax Melting Pot: Serves as a melting container for waxy materials. Its capacity meets the needs of small and medium-sized batch production and provides sufficient raw materials for subsequent filling.

Dual-Nozzle Filling Head: Supports simultaneous or independent operation. Different filling volumes can be set for each nozzle, making it suitable for containers of various specifications (such as candle jars and experimental sample bottles).

PLC Control System: Acts as the "brain" of the entire machine. It integrates multiple interfaces including an operation screen, manual screen, and temperature control screen, enabling precise adjustment of core parameters like filling volume, speed, and temperature.

Stepper Motor: Drives the filling pump to operate. Compared with ordinary motors, the stepper motor has a more stable rotation speed, which can further improve filling precision and avoid "over-filling" or "under-filling".

Locator and Recycling Device: The locator can be adjusted according to the size of the container to ensure the nozzle is aligned with the container opening. The recycling device can collect the waxy material dripped during the filling process, reducing waste.

Heating Tray: Water or heat transfer oil needs to be injected in advance to provide a stable heat source for the wax melting pot. It cooperates with the temperature control system to accurately maintain the melting temperature of the waxy material.

How to Fill

The entire filling process only requires 6 steps. No professional skills are needed, and even beginners can master it quickly:

Raw Material Preparation: Put solid waxy materials into the 10L wax melting pot, ensuring there are no impurities in the raw materials to prevent nozzle blockage.

Set Wax Melting Temperature: On the "Temperature Control Screen" of the PLC, set the temperature according to the melting point of the waxy material (usually above 75℃, depending on the characteristics of the waxy material), and wait for the waxy material to melt completely.

Set Filling Parameters: After the waxy material melts, enter the "Operation Screen" to set key parameters, including the "filling volume" (ranging from 5g to 1000g) for the two nozzles and the "interval time" (the pause time between two filling operations to prevent wax overflow).

Container Positioning: Adjust the "locator" according to the size of the container, and place the container directly below the nozzle to ensure the waxy material is accurately injected into the container during filling.

Start Filling: Press the start button (or step on the foot switch). The machine will automatically complete the filling according to the set parameters. The screen will display the "number of filled containers" and "filling time per container" in real-time, facilitating progress statistics.

Batch Repeat Operation: After the first container is filled, replace it with a new one and repeat steps 4-5. If parameter adjustment is needed, it can be modified in the PLC interface at any time.

Sell Point

The reason why this filling machine has become a "must-have tool" for crafting enthusiasts and small studios lies in its 4 core advantages:

High-Precision Filling: With the stepper motor and quantitative calibration function, the filling precision can be controlled within ±0.5g. During testing, you only need to set the filling volume to 200g and the quantitative pulse to 10000 to complete calibration, meeting the precision requirements of laboratory-level operations.

Flexible Adaptability: It supports voltages of AC 220V/50Hz or 110V/60Hz, which can be used directly in most regions around the world. The filling volume ranges from 5g to 1000g, which can not only fill small-capacity experimental samples but also make large-capacity candle jars, adapting to various scenarios.

Safe and Easy Maintenance: It is equipped with safety designs such as ground protection and anti-creeping switches. The PLC panel is prohibited from being wiped with alcohol; only cotton can be used to wipe off dust. When not in use for a long time, simply unplug the power cord, resulting in low maintenance costs.

Reliable After-Sales Service: Mechanical parts come with a 1-year warranty, and electrical parts have a 6-month warranty. After purchase, you can enjoy official maintenance services with the invoice and warranty card. If you encounter problems during operation, you can also call the after-sales hotline at 18681167628 for consultation.

Conclusion

Whether you are a cultural and creative practitioner pursuing "standardized mass production of handmade candles" or a researcher in need of "precise dispensing of waxy materials", this DIY Wax Melting and Filling Machine can balance "precision" and "efficiency", making the complex filling process simple and controllable. It is not just a tool, but also helps you lower the threshold of handmade production, improve the consistency of your works, and turn your ideas into reality faster. If you are troubled by the problems of waxy material filling, this lab-grade filling machine may be the key choice to improve your creation efficiency.
