Introduction to Wax and Fragrance Mixing Machine

Wax and Fragrance mixing machine mainly design for candle factory always change fragrance and color!

The machine is suitable for filling soy wax, beewax, coconut wax and more.

It owns the function of melting and filling.

The super advantage is can realize auto mixing the fragrance with the wax together that will save waste of raw material and fragrance release problem!

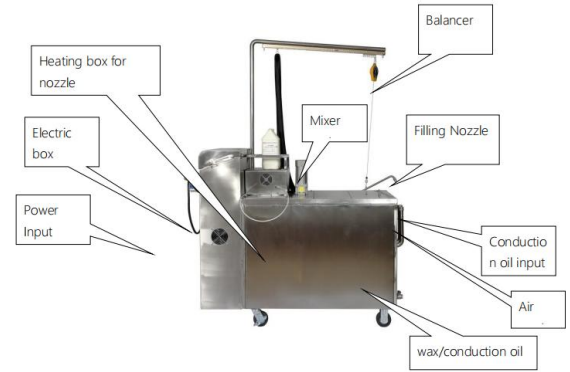

Compositions

The machine’s design focuses on functionality, durability, and user-friendliness, with key components working in harmony:

200L Melting Tank: Made of SS304 stainless steel (with SS316 gear pumps), it holds at least 200kg of wax, features a 75cm wax outlet, and uses an interlayer electric heating system (jacket requires water or heat transfer oil).

Control System: Equipped with a PLC touch screen (supports Chinese, English, and custom languages) and digital controls, it lets you set wax/fragrance weight, temperature, and filling speed. Physical buttons (fragrance on/off, wax on/off, manual/auto, start/stop) simplify quick operations.

Heating & Heat Preservation: Two temperature sensors monitor wax and jacket temperatures, with an adjustable range of 0-120°C (32-248°F) to match different waxes (e.g., 52°C for soy wax, 60°C for beeswax). A 3m heating pipe prevents wax solidification and blockage, while built-in insulation cotton enhances heat retention.

Auxiliary Components:

Electric mixer (speed-adjustable) to accelerate wax melting and prevent sedimentation.

Filters (in tank and filling nozzle) to remove impurities from wax and fragrance.

Thickened imported wheels (for easy movement) and industrial-grade plugs (with thick wiring) for safety.

Liquid detection device (monitors jacket water/oil levels to avoid dry burning) and balance (eases filling operations).

How to Fill

Operating the machine is intuitive, with clear steps to ensure precision and efficiency:

1. Preliminary Preparation: Check the jacket’s water/heat transfer oil level (add water if ≤100°C, oil if ＞100°C via the liquid detection device). Connect the power, install the mixer (if needed), and ensure filters/nozzles are tightly connected.

2. Parameter Setting: Use the PLC touch screen to set key values:

Wax and fragrance weight (range: 5-1000g; e.g., 300g wax + 10g fragrance).

Temperature (match your wax type, e.g., 55-65°C for paraffin).

Filling speed (adjust by container size: higher for large containers, lower for small ones to avoid splashing; default 800-1000RPM) and interval time (pause between fillings).

3. Mode Selection & Debugging: Switch between “Manual” (one press = one fill) or “Auto” (continuous filling). Use the stirring debugger to set mixer speed, then run a test fill. Calibrate parameters via the “Revise” function if accuracy deviates (up to ±0.1g).

4. Formal Filling: Arrange containers neatly. Press the “Start” button (or use the total switch): hold the black button for manual continuous filling, or let auto mode run. The “Fill Output” function counts products, and the machine stops automatically when it reaches the “Set Output” quantity.

5. Post-Filling Cleanup: After use, clean fragrance pipes by soaking filters in alcohol and running a few test fills. Drain jacket medium via the discharge valve, clean the tank/nozzles/filters, and turn off the power.

Sell Point

Yide's Wax and Fragrance Mixing Machine stands out in the market with four unbeatable advantages:

Precision You Can Trust: Servo system control ensures filling accuracy of ±1g, while separate wax/fragrance pumps and dual temperature sensors eliminate quality issues from uneven blending or temperature fluctuations.

Efficiency That Saves Costs: A 10L/min pump speed produces ~30 cups/min (for 200g containers). Quick fragrance switching (via dedicated pumps and easy pipe cleaning) cuts raw material waste and downtime. The interlayer heating design also reduces energy consumption for long-term savings.

Safety & Ease of Use: No professional skills are needed—thanks to the PLC touch screen and physical buttons. Safety features (liquid detection, industrial plugs, anti-clog heating pipes) and movable wheels make operation risk-free and flexible.

Customizable & Durable: The 200L tank can be customized to your needs; core parts (stainless steel, thickened silicone tubes) resist wear and high temperatures, lowering maintenance costs. Language customization and optional mixers adapt to diverse production scenarios.

Conclusion

Yide’s Wax and Fragrance Mixing Machine is more than just equipment—it’s a game-changer for candle manufacturers. It solves pain points like inconsistent quality, high waste, and slow production, while adapting to both large-scale mass production and small-batch customization. Backed by CE certification and Yide’s 10+ years of machinery expertise, this machine guarantees stable performance, reliable safety, and long-term value.

Whether you’re a startup aiming for high-end candle lines or a mature manufacturer looking to upgrade, this machine will help you boost efficiency, improve product consistency, and stand out in a competitive market. Ready to take your candle-making to the next level? Yide’s Wax and Fragrance Mixing Machine is your ideal partner.
