Introduction to Wick Cutting Machine

Introduction

Wick cutting machine is controlled by PLC touch screen, wick length adjustable and tab size changable.

Update electric type is more stable and high efficiency.

It can cut the wick and tighten with the tab.

It can make the wick straight!

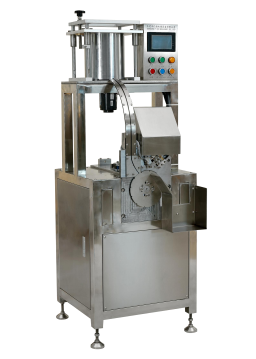

The YD-09 Intellectual Wax Thread Cutting Machine consists of core components that work in tandem to ensure stable operation:

Main Machine Body: With external dimensions of 500mm×450mm×1300mm and a weight of 118kg, it provides a sturdy framework for all functional parts.

Control System: Equipped with a touch screen and a control box, it allows parameter setting (wax thread length, production preset, etc.) and fault monitoring. Note that non-professionals should not open the control box.

Feeding Mechanism: Includes a wax holder charging hopper (with an adjustable wick hopper as an accessory) and a material path, responsible for conveying wax holders smoothly.

Cutting Mechanism: Comprises a cutting blade and a thread cutting cylinder, which cuts wax threads according to the preset length.

Auxiliary Components: Features an impact hammer (to help wax holders clamp wax threads), a wax holder taking roller, a thread feeding synchronous belt, and sensors (3 in total, with indicator lights for fault detection).

Accessories: Comes with essential parts such as 1 YD-09 wick cutting machine, 1 adjustable wick hopper, and 1 black power line (see the packaging list for details).

How to Operate

Filling the machine mainly refers to adding wax holders to the charging hopper and preparing wax threads, following these key steps:

Prepare Materials: Ensure the wax holders meet the specified dimensions (Φ12×4.0mm or Φ14×4.0mm) and the wax wick has a diameter of 1.5-2.5mm.

Add Wax Holders: Put the qualified wax holders into the charging hopper. Do not overfill—excessive wax holders will deform after long-term stirring, and the stirring motor may overheat and burn due to overload.

Thread Preparation: Turn on the power and press the thread conveying button. Release the button once the wax thread passes through the outlet, then press the thread cutting button to cut the wax thread, completing the filling preparation.

Start Operation: After setting parameters (wax thread length, production preset, etc.) on the touch screen, press the start button. The charging hopper will start working to feed wax holders into the material path. Hold the start button for 2 seconds to let the main machine run normally according to the preset parameters.

Sell Point

High Intelligence & Easy Operation: Controlled by a microcomputer with a touch screen, all parameters (wax thread length, production quantity, etc.) are visualized and easy to set. The machine also has automatic fault alarms and shutdown functions, reducing manual monitoring costs.

Flexible & Efficient Production: The wax thread length can be adjusted between 17mm-600mm, and the hourly output can reach up to 7000 pieces (depending on the wax thread length), meeting diverse production needs of enterprises.

Strong Safety Performance: It has multiple safety protections, such as prohibiting hands from entering the charging barrel, requiring machine shutdown before handling folded threads, and preventing non-professionals from opening the control box, ensuring the safety of operators.

Convenient Maintenance & Debugging: It supports crawl operation for debugging and maintenance (e.g., adjusting the wax holder taking roller), and the cutting blade, thread feeding synchronous belt, and impact hammer are easy to replace and adjust, reducing equipment downtime.

Stable & Reliable Quality: Equipped with 3 sensors for real-time fault detection, and automatic lubrication reminders (e.g., adding lubricating oil to the thread cutting blade slider every half month), ensuring long-term stable operation of the machine.

Conclusion

The YD-09 Intellectual Wax Thread Cutting Machine integrates intelligence, efficiency, safety, and convenience. It not only solves the pain points of traditional wax thread cutting—such as low efficiency, difficult parameter adjustment, and high safety risks—but also provides a reliable production guarantee for wax-making enterprises. Whether it is small-batch customized production or large-batch continuous production, this machine can meet the needs, helping enterprises improve production efficiency and product quality. If you are looking for a high-performance wax thread cutting equipment, the YD-09 is undoubtedly an excellent choice.
