Trolley Type Double Pump Filling Machine: Solve Production Pain Points, Boost Candle Business Efficiency

Trolley Type Double Pump Filling Machine: Solve Production Pain Points, Boost Candle Business Efficiency

When running a candle production business, nothing is more frustrating than unexpected equipment glitches disrupting your workflow — like a clogged filling pump stopping production mid-cycle. Today, we’ll introduce the Trolley Type Double Pump Filling Machine (Model YD-60L-1) — a device that not only has solid basic performance but also solves key pain points with thoughtful designs, especially its newly upgraded heating function for the filling pump.

Technical Parameter

First, Let’s Recap Its Reliable Basic Performance

Before diving into the highlights, let’s quickly go through its core technical parameters that lay the foundation for stable production:

Global Compatibility: Works with 220V 50Hz or 110V 60Hz single-phase power, so you don’t have to worry about voltage mismatches no matter where your workshop is.

Precise & Efficient Filling: 10L filling pump (with a 6L effective working capacity, doubling the 3L capacity of common market models), 1-500g adjustable filling range, 10-30pcs/min speed, and only 1g filling error — perfect for both small samples and large jar candles.

Large Capacity & Durable Build: 60L stainless steel wax barrel reduces frequent refilling; the entire machine uses 306 stainless steel(corrosion-resistant,rust-proof,food/pharmaceutical-grade) to ensure product safety and long service life.

Flexible Temperature Control: 60-80°C adjustable electric heating tray on the trolley keeps wax in a stable fluid state, avoiding uneven filling caused by wax solidification.

A Game-Changer for Clogging: Filling Pump with Heating Function

One of the most common issues with wax filling machines is pump clogging — especially when using waxes with high melting points (like beeswax) or when production pauses briefly. Once the wax in the pump cools and solidifies, you have to stop production to disassemble and clean the pump, wasting 30 minutes to an hour each time.

Our YD-60L-1 solves this problem perfectly with its heated filling pump:

The pump is equipped with a built-in heating component that maintains a constant low temperature (synchronized with the wax’s melting point via the operation box). Even if production pauses for 1-2 hours, the wax in the pump won’t solidify, so you can resume filling immediately without cleaning.

This function also protects the pump itself — frequent disassembly and cleaning to remove solidified wax can wear down the pump’s internal seals, reducing its lifespan. With the heating function, the pump’s service life can be extended by 50% compared to unheated models.

For example, a candle workshop in Canada that uses 100% beeswax (melting point 62-64°C) shared: “Before using this machine, we had to clean the pump 2-3 times a day. Now, with the heated pump, we haven’t cleaned it for a full week — production efficiency has jumped by 20%!”

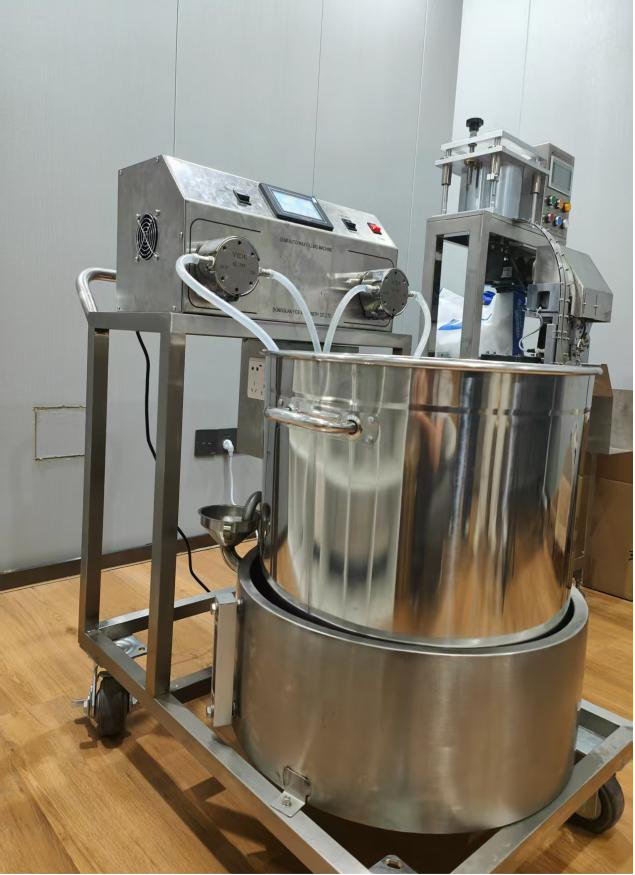

6 Core Components Work in Tandem: No Detail Overlooked

The machine’s excellent performance comes from the synergy of its 6 key components, each designed to solve practical problems:

Wax Barrel: 60L stainless steel, easy to move and clean — no more struggling with heavy, hard-to-wash plastic barrels.

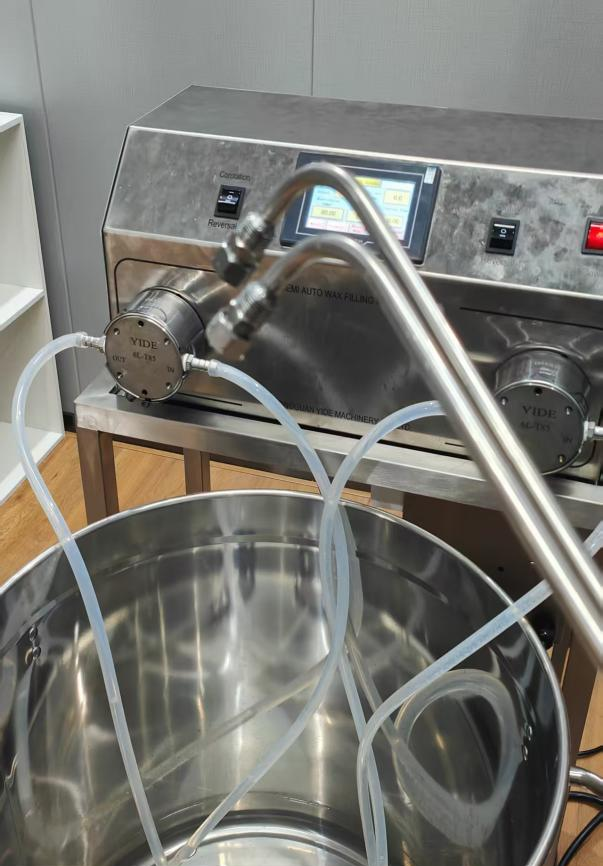

Double-Head Filling Nozzle: Though labeled “single nozzle” in basic specs, it supports single/double filling switching. The nozzle distance is adjustable, fitting everything from 5g tealight molds to 500g large jars.

Stirrer: Stainless steel, corrosion-resistant, and mixes fragrance with wax evenly — no more uneven scent in candles (a common complaint with manual mixing).

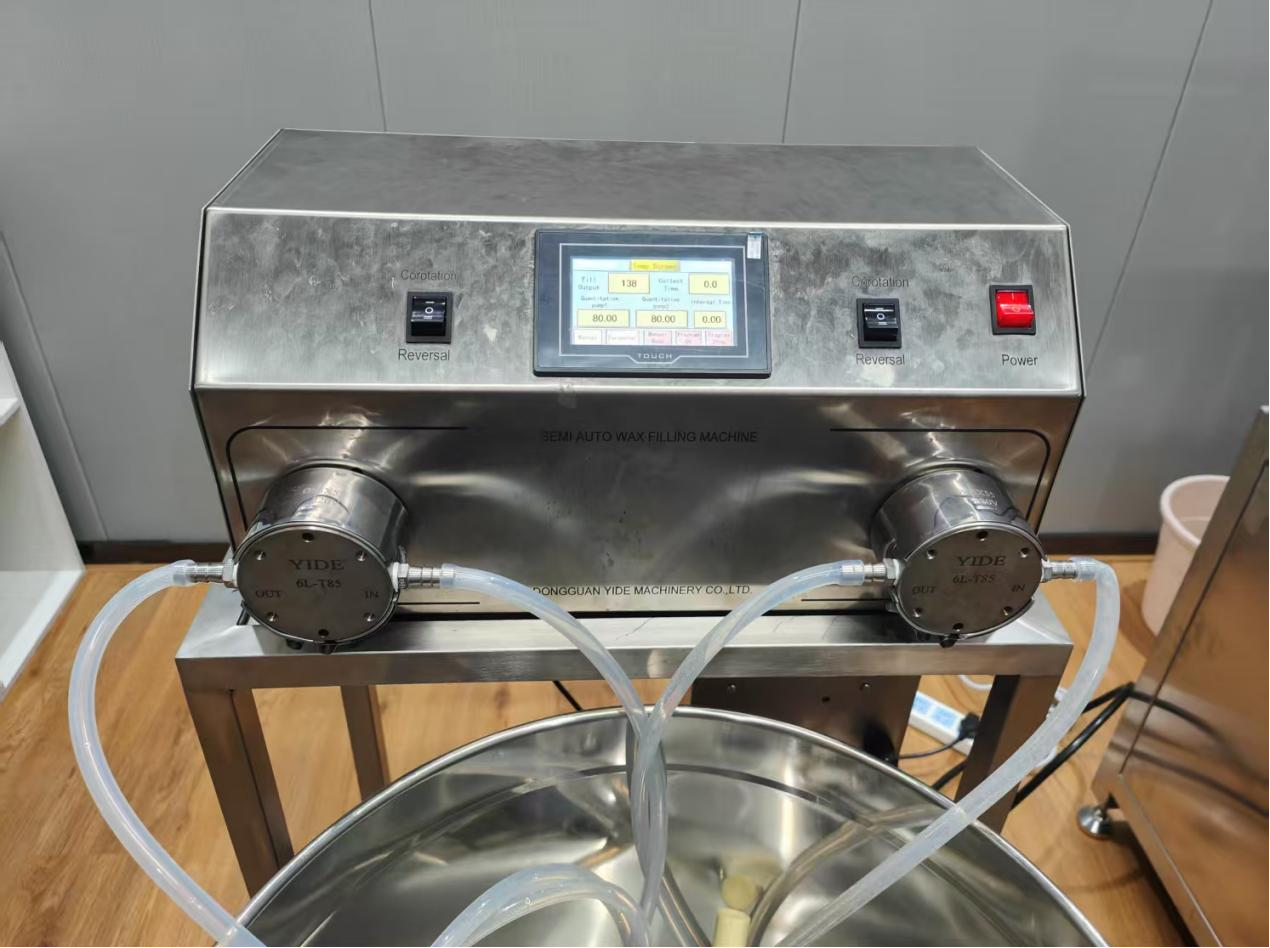

Operation Box: Button-controlled, simple enough for new employees to master in 10 minutes — no need for expensive professional training.

Movable Trolley: 4 wheels, can carry up to 200kg of materials. You can move the machine to any workshop corner, saving space and making workflow arrangement easier.

Heating Tray: As mentioned earlier, it keeps wax temperature stable — a must for consistent filling quality.

Reversal:If you finish your work, you can use the reverse function to pull the silicone tube and the candle inside the pump back into the wax barrel to prevent any blockage.

Trust the Expert Behind the Machine: Dongguan Yide Machinery

A good machine deserves a reliable manufacturer. Dongguan Yide Machinery, founded in 2008, has:

A 2000-square-meter standardized production workshop and 10+ years of candle machinery experience.Served over 1000 enterprises in more than 100 countries, with main products covering the entire candle production chain (wax melter, filling machine, wick machine, production line).

Customization capabilities: We can adjust the machine according to your specific needs (e.g., adding an automatic feeding system, modifying nozzle size).

Cooperation with the world’s Top 3 candle manufacturers — a testament to our quality.

Final Word

Whether you’re a small handmade candle workshop tired of frequent pump clogging, a medium factory wanting to cut labor costs, or a large enterprise needing to optimize production lines, the Trolley Type Double Pump Filling Machine (YD-60L-1) has you covered. Its heated pump, durable build, and flexible design will turn production headaches into smooth workflows.

Ready to try it out? Contact us today for a free quote and a live video demo of the machine in action — let’s help you take your candle business to the next level!
