Yide 200L Stainless Steel Square Electric Wax Melting Tank with Digital Temperature Control

Product Introduction

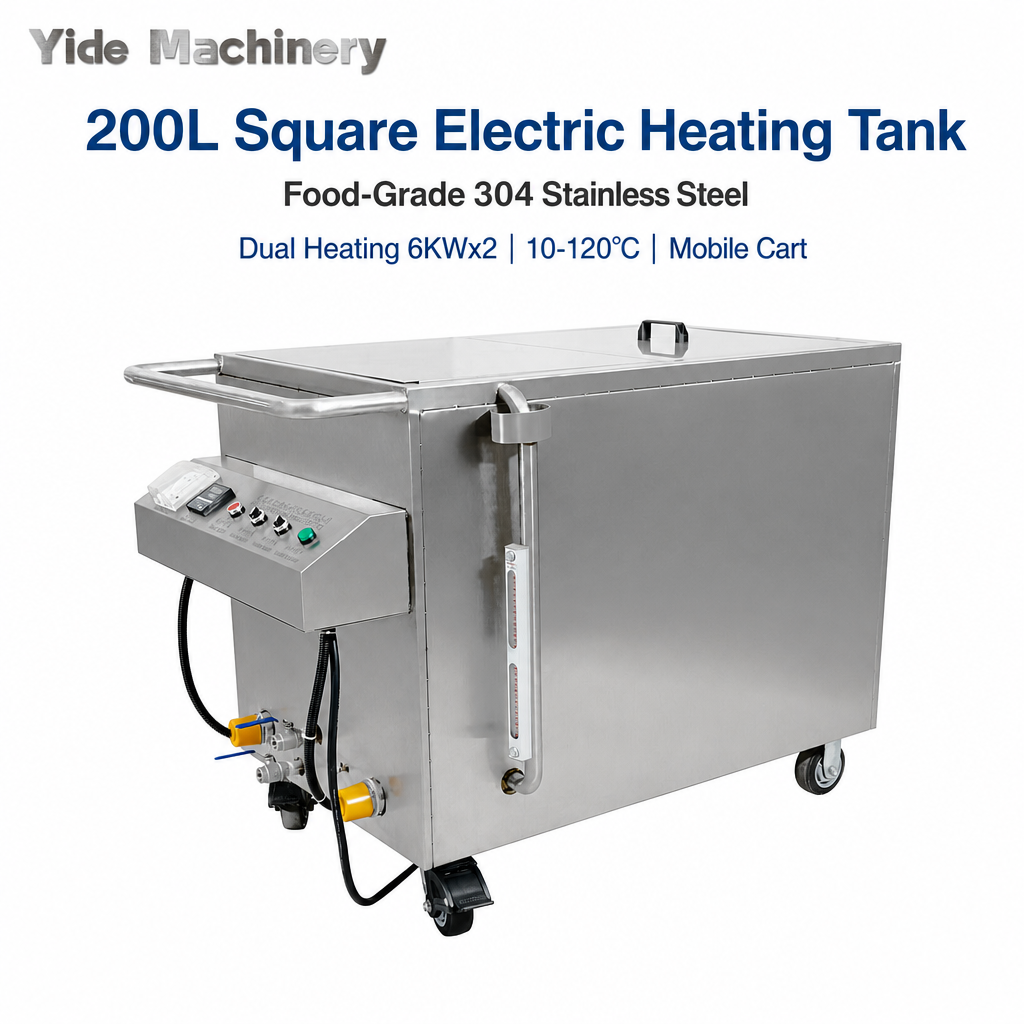

The Yide YD-200 Square Heating Tank is a professional electric heating barrel designed for medium-to-large batch wax melting and liquid heating in the candle, cosmetic and food industries. The entire tank is fabricated from food-grade 304 stainless steel, which provides outstanding anti-corrosion, anti-rust and anti-collapse performance, ensuring a long service life even under continuous industrial operation.

Why Choose the YD-200?

1. 200L Large Capacity - The generous 200L volume supports medium-to-large batch production, reducing refill frequency and improving overall workflow efficiency. It is an ideal choice for candle factories that need to melt large quantities of wax at one time.

2. Food-Grade 304 Stainless Steel - All contact surfaces are made of food-grade 304 stainless steel. The material is safe for direct contact with wax and cosmetic raw materials, easy to clean, and resistant to corrosion and rust, guaranteeing product purity and hygiene.

3. Double-Jacket Interlayer Design - The double-jacket structure creates a safe insulation layer between the heating element and the outer shell. This design keeps the outer surface at a comfortable temperature, reduces heat loss, and maintains a stable internal temperature - a key advantage for constant-temperature heating processes.

4. Dual Heating System (6KW x 2) - Two independent 6KW heating units work together to heat the tank quickly and evenly, cutting warm-up time to approximately 1.5-2 hours. The dual system also provides redundancy - production can continue even if one heating unit needs maintenance.

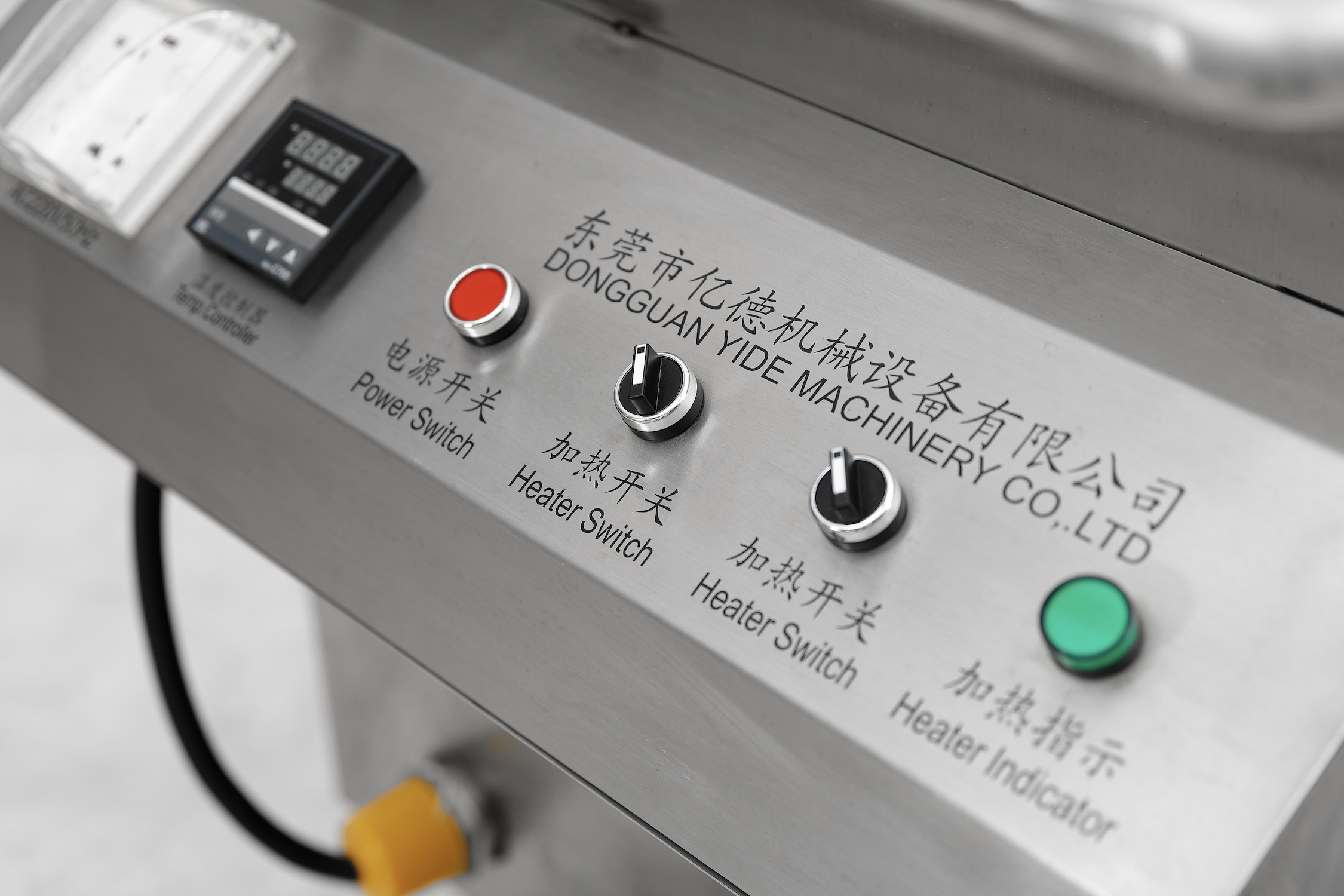

5. Digital Temperature Controller - The precise digital controller allows temperature adjustment from 10 to 120 degrees Celsius, giving you full control over the melting process for different wax types with different melting points.

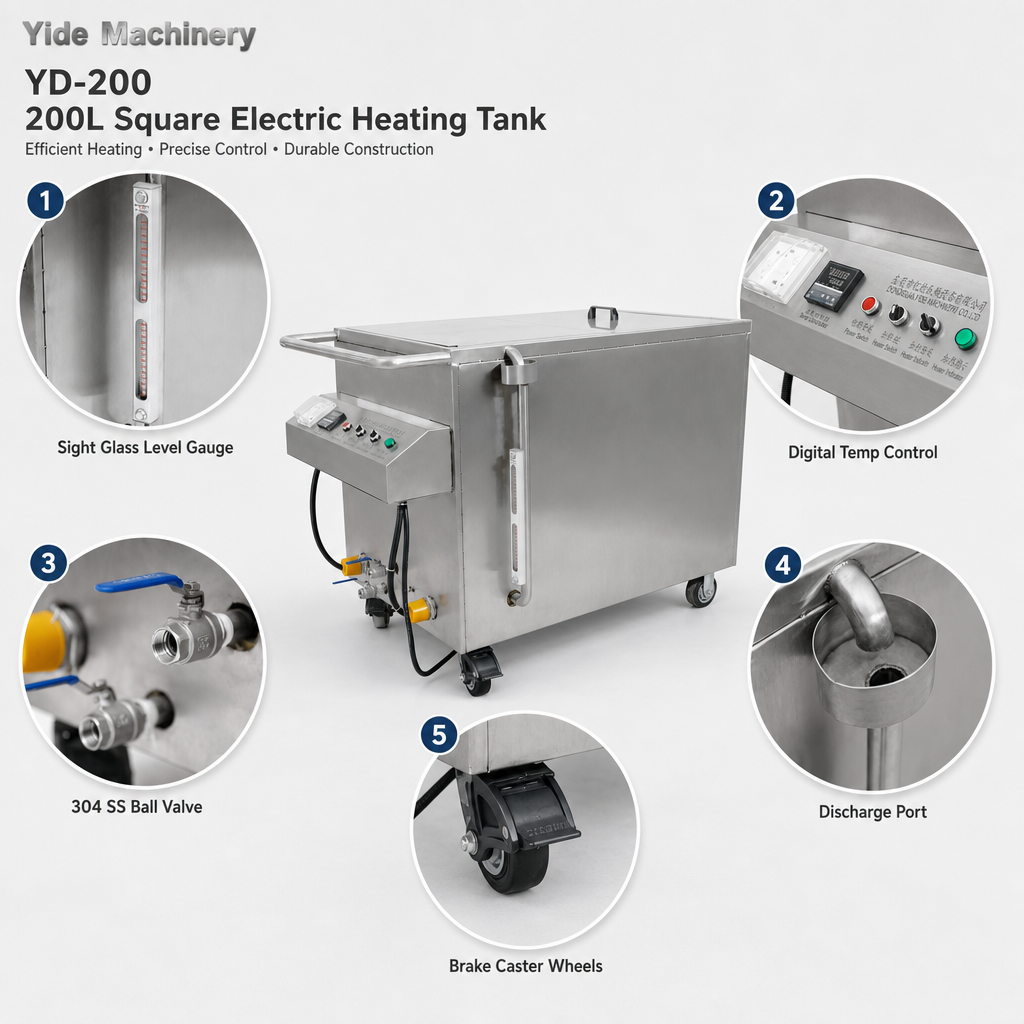

6. Sight Glass Level Indicator - A clear sight glass on the front panel allows operators to monitor the liquid level in real time, preventing overfilling and ensuring accurate batch control.

7. Mobile Design with Brake Casters - Four heavy-duty swivel casters with brakes make the tank easy to move around the workshop and lock securely in place during operation. The sturdy handle provides comfortable maneuvering.

8. Wide Material Compatibility - Suitable for soybean wax, paraffin, beeswax, jelly wax and other heat-sensitive materials, covering the full range of wax types used in modern candle production.

Applications

- Candle Industry: melting and holding soy wax, paraffin, beeswax before pouring

- Cosmetic Industry: heating creams, oils and balms to optimal processing temperature

- Food Industry: heating food-grade materials and ingredients

- Laboratory & Research: constant-temperature liquid heating and holding

Certifications

The YD-200 is CE certified and our factory holds ISO 9001:2015 quality management system certification, RoHS and EMC compliance, ensuring export-ready quality and safety standards.

FAQ

Q1: Can the tank be customized? A: Yes, capacity, size and heating configuration can be customized according to your production needs.

Q2: What wax types are supported? A: Soybean wax, paraffin, beeswax and jelly wax are all supported.

Q3: Is export packing provided? A: Yes, sturdy export-grade wooden case packing ensures safe shipment.

Q4: What is the lead time? A: Standard lead time is 15-20 working days after order confirmation.

Q5: Do you provide after-sales support? A: Yes, 1-year warranty, online support and spare parts supply are provided.
