A Peek into a Fully Automated Candle Production Line

Ever wondered how those perfectly filled, beautifully scented jar candles make their way to your cozy corner? It's not magic (though it feels like it); it's engineering! Today, we're pulling back the curtain on a full-auto production line that's like a well-rehearsed symphony of machines, turning melted wax into the ambiance of your dreams. Buckle up as we explore the three main stars of the show: the 12-Nozzle Filling Machine, the Feed Cup Device, and the Pre-heating Device.

The Main Attraction – The 12-Nozzle Filling Machine

This is the heart of the operation, where the liquid wax meets the jar. Think of it as a super-precise, temperature-controlled chef for your candles.

1. Hydration Station & Setup: First things first, this machine needs a warm jacket! We fill the warming tanks with water or special conduction oil until they're about 80% full. It's like preparing a warm bath to keep the wax at the perfect, pourable consistency. Then, we wheel this beast into position on the conveyor line, right next to the pre-heater.

2.Power Up & Clean Sweep: Time for juice and air! We plug in the electricity and hook up a hefty air compressor . Before the main event, we give the warming tanks a good rinse using the handy discharge valves. Clean machine, happy candles!

3.Wax On!: Now for the main ingredient. We connect a melted wax supply to the warmer tray. Using a pump, we transfer the melted, scented wax into the main filling tank. It's like loading the ammunition for our 12-nozzle wax cannon.

4.Heating Things Up: We flip on the heater switches for the pump, filling tank, and wax tank. This is the "keep it liquid" phase, ensuring the wax flows smoothly and doesn't solidify prematurely.

5.The Calibration Dance : This is where precision comes in. We switch to Manual Mode. Here's the fun part: we test each of the 12 pumps one by one.

• Place a jar under a nozzle .

• Tell the machine to fill it.

• Weigh the result on a scale.

If it's not perfect, we dive into the "Parameter Screen" . We tweak the "1# Quantitative" setting up or down until the weight is spot on. We repeat this for all 12 nozzles. Consistency is king!

6.Lights, Camera, Auto!: Once all pumps are perfectly calibrated, we switch to glorious Auto Mode. We turn on the conveyor belt, adjust its speed, and hit Start. Now, the machine takes over, filling jar after jar with unwavering accuracy. The touchscreen shows us everything: which pumps are active, the wax level, and conveyor status. It's mission control for candles!

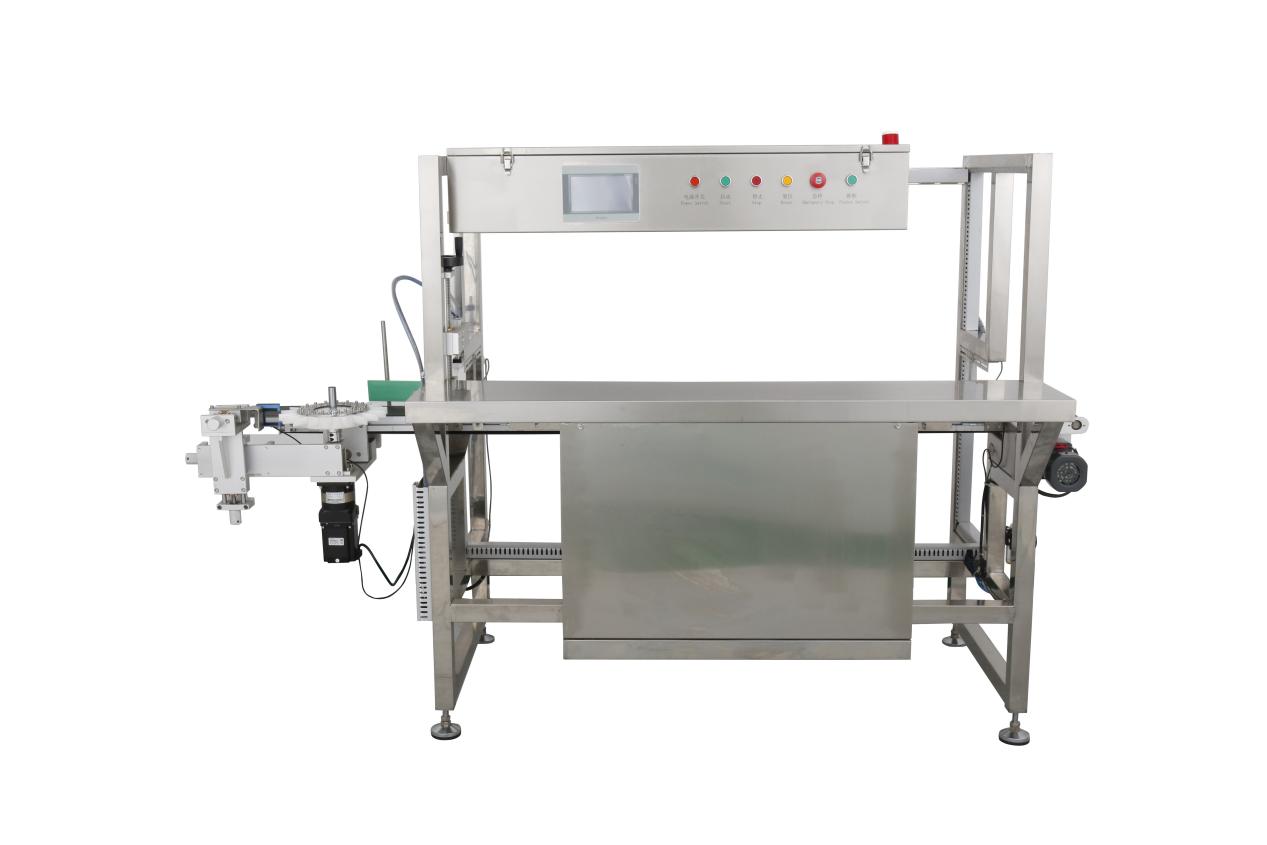

The Jar Butler – The Feed Cup Device

This clever gadget is the polite butler that gently places empty jars onto the moving belt, ensuring they're perfectly positioned for their wax fill.

1. Size Matters: First, we adjust a guard bar to match the size of our candle jar. Not too tight, not too loose – just a smooth, guiding hug.

2. Sensor Savvy: We install and check sensors. A green light means "all clear"; a red light means "obstruction ahead!" – a quick check is needed.

3. Mode Selection – The Rotary vs. Cylinder Dilemma:

• Rotary Mode: If the jar fits nicely on the circular turntable, we choose this mode. It's like a gentle carousel for jars.

• Cylinder Mode: For jars that are too big or small for the turntable, we choose this mode and slightly move the turntable out of the way. No hard feelings!

4. Air Power & Programming: We turn on the air cylinder switch. Then, it's data entry time! We input specific parameters on the PLC touchscreen for things like delay times and speeds. The manual gives example settings for 10Z and 20Z jars.

5. Test Run & Full Auto: We use the "Interval" mode to test the movement step-by-step. Once happy, we press "Reset," select "Auto," and then "Start." The butler is now on duty, gracefully feeding jars onto the line. If a jar goes out of bounds, a sensor will alarm, prompting us to remove the offender and clear the alarm.

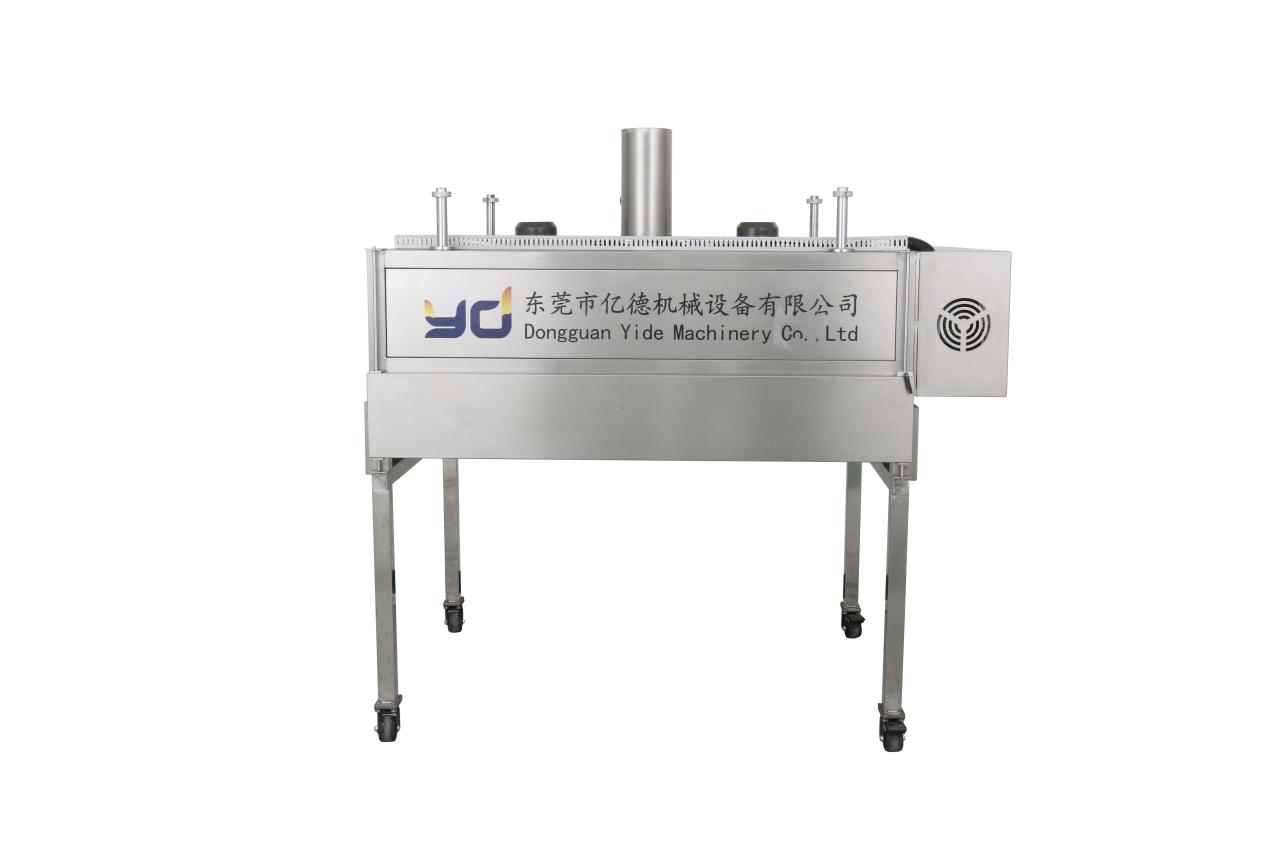

The Warm Welcome – The Pre-heating Device

Why pre-heat a jar? It prevents the hot wax from cracking the cold glass and ensures a smoother finish. This unit is like a toaster oven for jars.

It consists of two parts: one for heating the jar's Bottom and one for heating its Body.

The operation for both is beautifully simple:

1. Unlock & Energize: Unlock the electrical box and push the main electric brake upwards. Safety first!

2.Power On: Flip the main power switch.

3. Set the Temp: Use the arrow buttons to set the desired temperature. The screen shows the current and target temperatures. It's as easy as setting your home thermostat!

4. Heat It Up!: Flip on the heater switch. A green indicator light confirms the heat is on. For the body heater, you might also have a fan switch to circulate the heat evenly.

Curtain Call

And there you have it! From a cold, empty jar to a perfectly pre-heated vessel, filled with precisely measured scented wax by a coordinated ballet of machines. This full-auto line is a marvel of efficiency and consistency. The next time you light a beautifully made jar candle, remember the intricate dance of machines and the careful calibration that went into creating that simple moment of peace and fragrance. Now, that's a warm thought!
