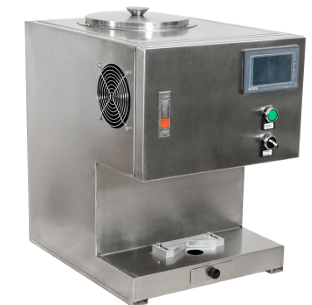

DIY Wax Melting & Filling Machine: Ideal for Labs & Small-Batch Candle Makers

Introduction

For candle labs, small-batch producers, or enthusiasts testing new formulas, bulky industrial machines are overkill. What you need is a compact, precise tool that balances ease of use with reliability—and that’s exactly what Dongguan Yide Machinery’s DIY Wax Melting and Filling Machine for Labs delivers. Designed for low-volume work, this machine brings industrial-grade accuracy to small-scale candle making, eliminating hassle while ensuring consistent results. Let’s break down why it’s a top pick for labs and small businesses worldwide.

Key Specs: Power Meets Practicality

Yide’s DIY machine is built to fit the unique needs of lab and small-batch use, with specs that avoid overcomplicating while delivering performance:

• Power & Voltage: 3KW power, compatible with 220V/50Hz (13.5A) or 110V/60Hz (27A)—no extra converters for global use.

• Filling Performance: 5g–1000g filling range (suits tiny samples to 1kg candles) and 5–20pcs/min productivity (perfect for small batches).

• Core Components: 6L/min max pump flow rate and a stepping motor for stable control, preventing wax waste from sudden surges.

• Control System: PLC touchscreen with English/Chinese options—intuitive even for first-time users.

• Temperature Control: Adjustable heating for the melting pot, pumps, and nozzles to match soy, beeswax, or paraffin melting points, avoiding clogs.

Its compact design fits on lab benches or small workshop corners, and it comes fully equipped: 1 DIY-I dispensing machine, 1 large filling nozzle, and 1 power line—unbox and use immediately, no extra purchases needed.

PLC Interface: Simple Control for Precision

The biggest win for users is the user-friendly PLC touchscreen, which cuts through complexity. Here are the key screens you’ll rely on:

Operation Screen: Set filling volumes for two nozzles (e.g., 100g for Pump 1, 200g for Pump 2), adjust interval time (pause between fills), and track fill output (no manual counting).

Temperature Control Screen: Set separate temps for pumps (≈70°C), melting pot (match wax type—52°C for soy, 60°C for beeswax), and nozzles (special setting for thick waxes). Real-time temp displays ensure consistency.

Manual & Calibration Screens: The manual screen lets you test/reverse pumps to clear leftover wax (critical for switching wax types). Calibration (set pulse to 10000, test 200g fills with a 0.01g scale) ensures ±0.5g accuracy—better than most DIY machines.

How to Use: 6 Simple Steps

You don’t need technical expertise to run this machine. Here’s the quick workflow:

Prep: Add water/heat transfer oil to the heating tray (prevents dry burning). Connect the filter, turn on power, and reverse pumps to clear air bubbles from tubes.

Load Wax: Pour wax into the melting pot.

Set Temp: Use the temperature screen to match your wax’s melting point (e.g., 55°C for paraffin) and wait for full melting.

Adjust Fills: On the operation screen, set volume (e.g., 50g for samples) and interval time (e.g., 1.5 seconds).

Position Jars: Use the adjustable locator to align jars under nozzles.

Start Filling: Press start (or use the remote) to begin. After use, reverse pumps to empty tubes for easy cleaning.

Troubleshooting: Quick Fixes for Common Issues

Even the best machines hit snags—here’s how to resolve Yide’s most common issues fast:

No Power: Check if voltage matches (220V/110V) and the plug is secure.

Inaccurate Fills: Clear clogged nozzles, re-run calibration, or ensure wax temp is above 75°C (cool wax is thicker and hard to measure).

Filling Stops: Verify nozzles are unclogged, the motor is running (check I/O screen), and the pot has enough wax.

PLC Alarm: Motor is stuck—set temp to 80°C for 10 minutes, turn off, wait 1 minute, then restart to clear the alarm.

Maintenance & Warranty: Long-Term Reliability

Keep the machine running for years with simple upkeep:

Safety: Ensure proper grounding and use an anti-creeping switch.

PLC Care: Wipe dust with a dry cotton cloth—no sharp objects or alcohol.

Storage: Unplug if unused for long periods to avoid electrical damage.

Yide backs the machine with a solid warranty: 1 year for mechanical parts (pump, nozzles) and 6 months for electrical parts (PLC, motor). Keep your invoice and warranty card (no replacements if lost) and follow the manual for operation—Yide’s after-sales team (+86 0769 88389185) responds within 24 hours for global support.

Who It’s For: Perfect Users

This machine shines for:

Labs: Test wax-fragrance blends with precise fills to predict production performance.

Small-Batch Makers: Produce limited-edition candles (holiday sets, custom orders) without waste.

Enthusiasts: Turn hobby making into a small business with professional results.

Schools: Teach candle-making with a safe, easy-to-use tool that demonstrates industrial principles.

Why Choose Yide’s DIY Machine?

It outperforms competitors for three key reasons:

Precision: ±0.5g accuracy (vs. ±2g for most DIY machines) thanks to the stepping motor and calibration.

Global Use: Works with 110V/220V—no converters needed.

Expert Support: Yide’s 15+ years in candle machinery means their team offers tailored advice (e.g., adjusting temp for coconut wax).

Final Thought

For labs and small-batch makers, Yide’s DIY Wax Melting and Filling Machine lets you work smarter. It eliminates guesswork, saves setup/cleanup time, and delivers results that rival large-scale production. Whether you’re testing scents or selling candles, this machine lets you focus on what matters: creating great products.

Learn more at www.yidemachine.com or contact Yide at candlemachine@dgyide0769.com for a demo. Small-scale candle making just got easier.
