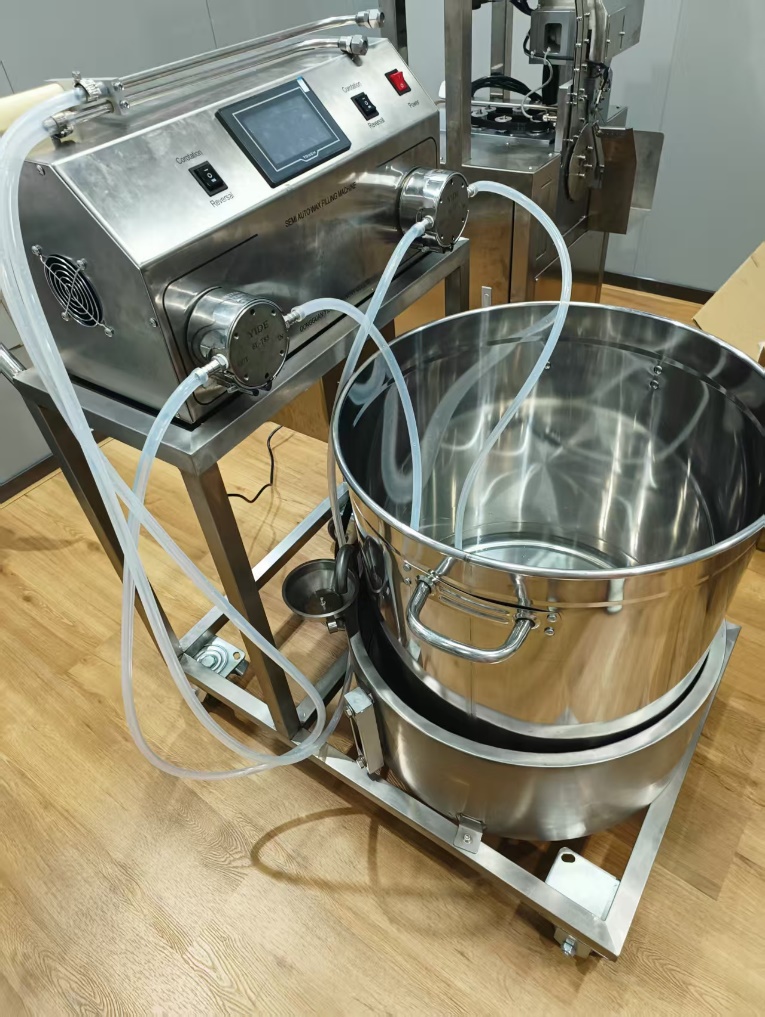

Introduction to Trolley Type Wax Warming with Filling Machine

Whether you are an experienced professional candle manufacturer or a newcomer to the industry, you have presumably encountered challenges such as uneven wax filling, equipment clogging, and cumbersome fragrance replacement during production. The Trolley Type Wax Warming with Filling Machine from Dongguan Yide Machinery Co., Ltd. — this best-selling equipment — is specifically designed to solve these pain points. It combines flexibility and precision, can adapt to candle production needs of different scales, and is an essential piece of equipment for improving production efficiency and product quality.

Compositions

Every part of this machine is engineered for functionality and ease of use, with key components including:

Warming Tray & Its Electrical Box: Maintains constant temperature to keep wax in a smooth liquid state; the electrical box controls the tray’s heating system.

60L Filling Tank: Stores wax liquid, and its size is optimized for easy fragrance replacement and cleaning—ideal for manufacturers using multiple scents.

Dual Filling Heads: Adjustable in width, equipped with filter meshes to remove impurities and prevent dripping, ensuring clean, precise fills.

PLC Touchscreen: The intuitive control center for operating the machine, allowing easy setting of parameters like filling speed and temperature.

Dual Filters: Further purify wax liquid, enhancing the final candle’s quality by eliminating tiny particles.

Silicone Tubes: Serve as the passage for wax liquid, flexible and easy to clean.

Heated Pumps: Prevent wax from clogging by maintaining a consistent temperature, ensuring smooth wax flow during production.

How to Fill

Operating the Trolley Type Wax Warming with Filling Machine is straightforward, with 8 simple steps:

Prepare the Warming Tray

Add soy oil (preferred over water to avoid evaporation and reach temps above 100°C) to the tray’s inner layer, up to the “6” mark on the liquid level indicator.

Set Tray Temperature

Turn on the power switch, input the desired temperature (the screen shows real-time and set temps), then flip the heater switch.

Start the Filling Machine

Power on the machine, select your language, and enter the main interface—here you’ll see settings for fill output, filling duration (collect time), pump capacity (quantitative pump), and interval between fills.

Test the Machine

Switch to manual mode, turn on the corotation switch, and check if all parts operate normally via the manual screen.

Set Pump Temperature

Navigate to the temperature screen, input the pump’s target temperature (avoid touching the “AT” key to prevent parameter confusion), then tap “on”.

Adjust Filling Parameters

Go to the parameter screen—set fill speed (standard: 500, adjustable as needed) and use the “revise” key to calibrate if filling accuracy deviates.Start Automatic Filling

Select automatic mode, turn on the corotation switch, and tap “program on” to begin production.

Post-Filling Cleanup

After use, upright the silicone tubes, switch to manual mode, turn on the reversal switch to empty residual wax, then power off the machine. If the reversal process is not thorough, it may cause blockages and rusting of the filter, filling head, pumps.

Sell Point

What makes this machine stand out in the competitive candle equipment market? Here are its unbeatable advantages:

Precision You Can Trust: Uses a stepper motor (instead of a regular motor) for ±1g filling accuracy; the “revise” key lets you calibrate errors, eliminating uneven fills.

Adjustable Speed & Anti-Splashing Design: Filling speed is customizable, and the gentle wax flow control ensures no splashing—keeping containers and workspaces clean.

Anti-Dripping & Anti-Clogging: Filling nozzles have strainers to prevent dripping, while heated pumps stop wax from solidifying and clogging tubes.

Easy Maintenance & Fragrance Switching: The 60L tank is easy to clean, and we recommend one tank per fragrance to simplify scent changes.

Wide Compatibility: Works with 100L-2000L wax melting tanks (200L/500L stand-type tanks are most popular) for seamless production lines.

Customer-Centric Support: Comes with a user manual, operation videos, and 1-on-1 video call guidance; we also offer voltage customization (with transformers for non-220V regions) and a 1-year warranty + lifelong maintenance.

Fast Shipping: Standard machines are in stock (shipped 1-2 days post-payment); customized models take just 10-20 working days.

Conclusion

For candle manufacturers looking to cut inefficiencies, improve product quality, and scale operations, Dongguan Yide’s Trolley Type Wax Warming with Filling Machine is the ultimate solution. It’s not just a piece of equipment, but a partner that adapts to your needs.

Follow our live streams for more demos, or contact us directly to secure your machine—buy early, ship early, and start boosting your candle business today! Trust Yide, and you’ll get unbeatable quality and after-sales service.
