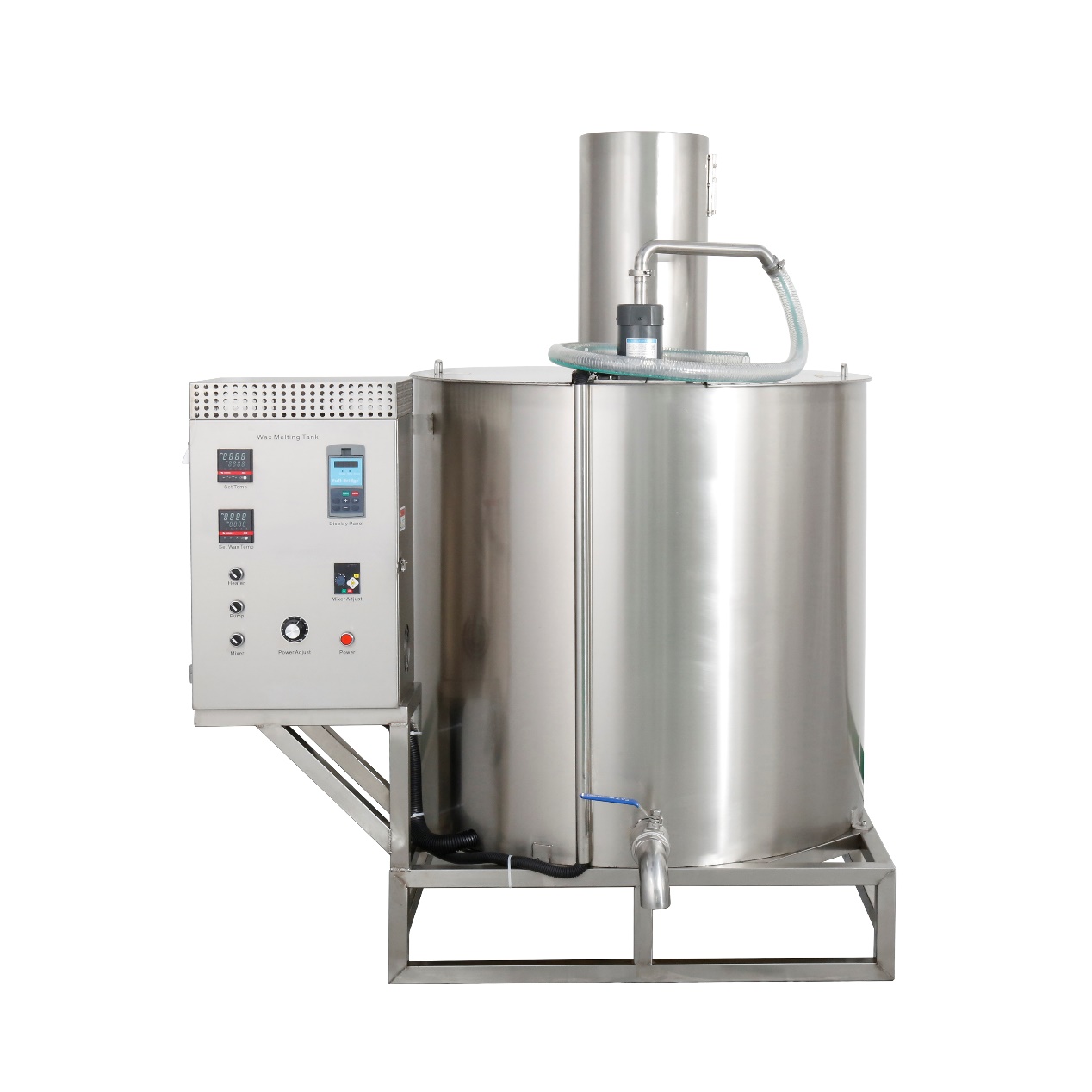

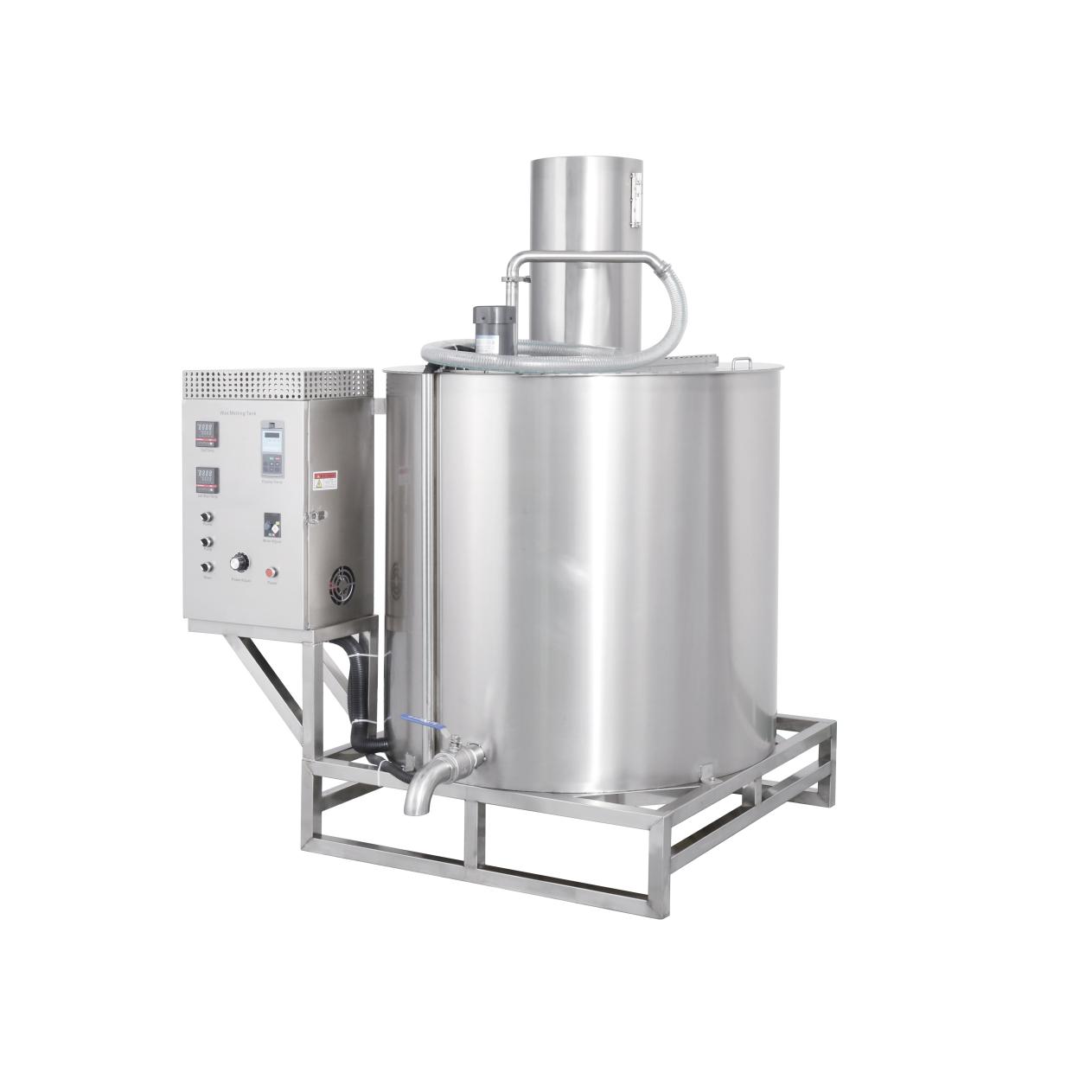

Introduction to Wax Melting Tank

1000L Floor type electromagnetic heating tank is design for load the wax on the land and outlet the wax trough the pump.

Double layer design to keep wax warming and mixer device to mixing raw materials evenly.

Temp and mixing Speed adjustable, higher production and safety.

Compositions

This wax melting tank is a fully integrated system, with core components that work in sync for seamless operation:

1000L Main Tank: The large-capacity tank holds massive batches of wax, ideal for medium to large production needs.

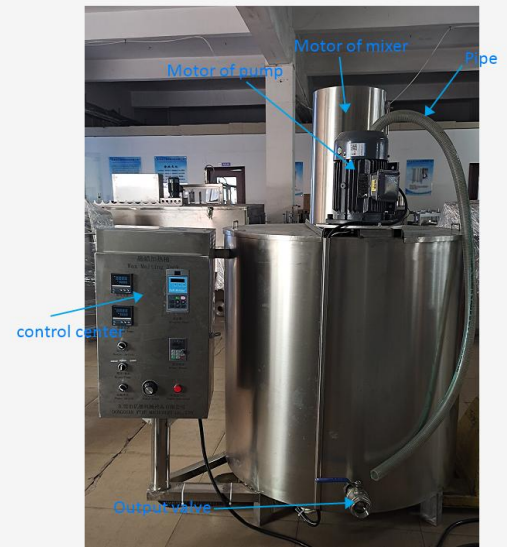

Key Functional Parts: It includes a mixer motor (for uniform wax melting), a pump motor (1400r/m max speed for fast wax transfer), a control center with a display panel (to set/monitor temperature and operate functions), an output valve, and 3 meters of matching pipe.

Essential Accessories: The package comes with 1 ladder (for easy wax block loading), a warranty card, and all necessary connections—so you can set it up quickly.

How to Use

Using the 1000L Wax Melting Tank is straightforward, but following the steps ensures safety and efficiency:

1. Power & Pipe Preparation: Connect the power to an air switch (use a 10mm² cable—critical, as max current is 47.8A) and attach the included pipe to the pump.

2. Load Wax: Put paraffin blocks (or other wax types) into the main tank.

3. Start Heating: Turn on the machine, set your desired temperature via the display panel, and flip the heater switch. Important: Do NOT turn on the mixer yet—this avoids burning the mixer motor.

4. Mixer Activation: Once the wax is fully melted and flows smoothly, turn on the mixer to keep the wax temperature consistent.

5. Wax Transfer: Use the “Pump out” button to send melted wax to your reactor. You can also use “Pump back” or “Stop pump” to control the flow as needed.

Sell Point

What makes this 1000L Wax Melting Tank stand out from ordinary options?

Rapid Heating & High Capacity: Electromagnetic induction heating speeds up melting, while the 1000L tank handles large batches—perfect for scaling production.

Safety First: It requires a ground wire connection and anti-creeping protection switch; the “no mixer before melting” rule also prevents motor damage, reducing accident risks.

Easy to Maintain: For long idle periods, just unplug the power and drain remaining wax—no complex upkeep. The clear display panel and simple buttons also lower operation barriers.

Reliable After-Sales: It comes with a warranty card (keep it with your invoice for repairs), backed by Dongguan Yide Machinery’s expertise—you won’t be left hanging if issues arise.

Conclusion

For businesses that need consistent, large-scale wax melting, the 1000L Electromagnetic Wax Melting Tank isn’t just equipment—it’s a productivity booster. It solves pain points like slow melting, small batch limits, and complicated maintenance, while prioritizing safety and ease of use. Whether you’re a candle manufacturer ramping up output or an industrial facility processing wax, this tank streamlines your workflow and saves time. Invest in it, and you’ll turn a tedious step (wax melting) into a smooth, efficient part of your production line.
