Tea Light Candle Making Process

Raw material preparation

*Wax:soy wax,paraffin wax,coconut wax,beeswax,blended wax and so on.

*Wick:cotton wicks

*Fragrance &Color powder

*Aluminum Cup

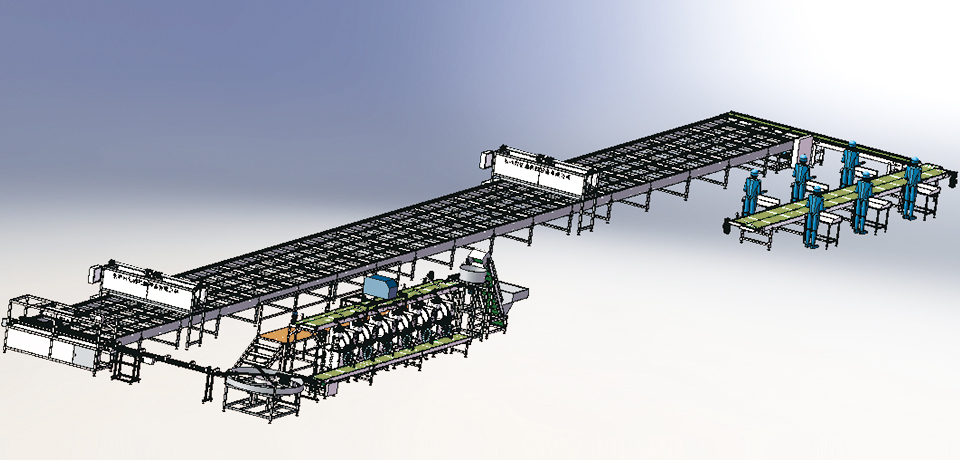

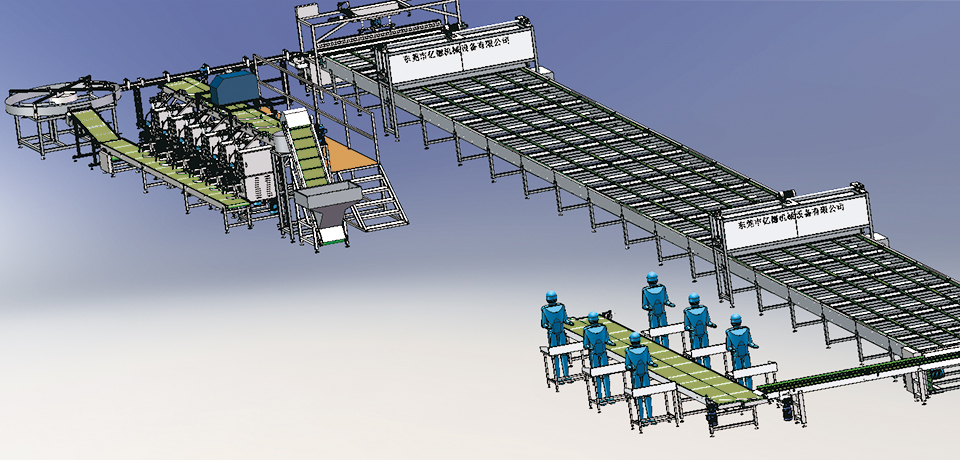

Fully automated production line solution.

First Step:Melting the wax

Power supply:380v,60hz ,3 phase

Power :30KW

Heating temp:0-120

Heating time:2-3hours

Mixer :speed adjustabale

Pump:outlet the wax

According to your production demand to choose,capacity can be 50L,100L,200L,300L,500L,1000L,2000L and more.

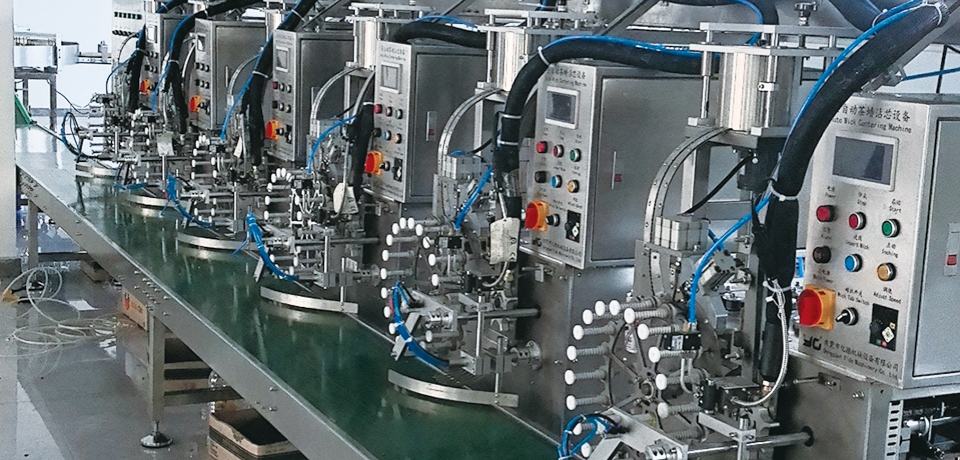

2nd Step: Inserting the wick to the Aluminum Cup

Fully automatic tealight wick inserting machine can produce 6000-8000pcs/h if wick length 25mm. Suitable for mass production and connect with fully automatic line.

3rd step:Wax Filling

23-56 nozzles fully automatic filling system for choose,according to customer’s output requirement to choose,suitable for single fragrance and color mass production.

4th Step:Cooling Down

Cooling time usually need about 1 hours,cooling house can speed up the cooling down time,improving production efficiency

5th step:Packaging

6th step: Labeling

Bottom labeling machine

Accuracy:+1mm

Speed: 30~60 pieces/min

Applicable product size: customized according to the sample

Applicable label size: Length :10mm~180mm,Width(bottom paper width): 15mm~120mm

Overall size: about 190cm*70cm*140cm (length x width x height)

Power:220v-50hz single phase

N/W:100kgs
