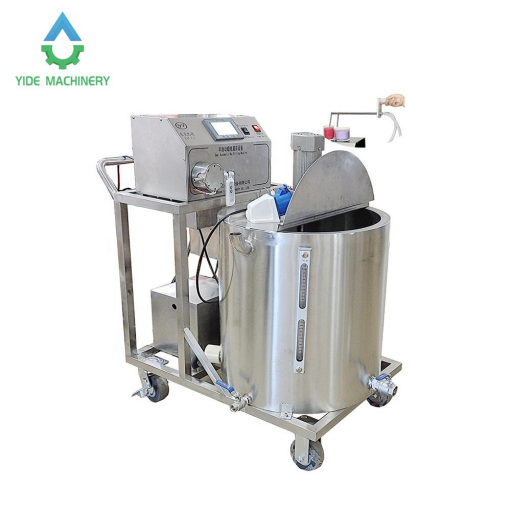

Trolley Type 100L Wax Melter Tank and Filling Machine

Introducing the Trolley Type 100L Wax Melter Tank and Filling Machine: A Game-Changer for Candle Manufacturing

In the ever-evolving world of candle manufacturing, efficiency, precision, and quality are paramount. As a leading manufacturer of candle-making machinery, Dongguan Yide Machinery Co., Ltd. is proud to unveil our latest innovation—the Trolley Type 100L Wax Melter Tank and Filling Machine. Designed with the modern candle maker in mind, this machine combines cutting-edge technology with user-friendly features to streamline your production process and elevate your product quality.

Overview of the Trolley Type 100L Wax Melter Tank and Filling Machine

The Trolley Type 100L Wax Melter Tank and Filling Machine is a comprehensive solution for melting and filling wax in candle production. Engineered by Angela Tang and her team at Dongguan Yide Machinery Co., Ltd., this machine integrates a single or double heat gear pump filling system with a melting tank, creating a seamless workflow from melting to filling.

Key Features

1. Single and Double Heat Gear Pump Filling: The machine is equipped with a single or double heat gear pump filling system, allowing for precise control over the filling process. The pump temperature can be easily set and adjusted via the PLC touch screen, ensuring optimal performance and flexibility.

2. Back Pumping Functionality: One of the standout features of this machine is its back pumping capability. This function prevents wax from cooling down and solidifying in the pump and pipes, making it easy to clean and change materials. This not only reduces downtime but also enhances the overall efficiency of the production process.

3. Trolley Design for Mobility: The t rolley-type design of the machine makes it highly movable and easy to operate. Equipped with wheels and brakes, it can be effortlessly relocated within your production facility, saving time and enhancing workspace flexibility.

4. Versatile Melting Tank Capacities: The melting tank is available in a range of capacities, including 30L, 50L, 100L, 150L, and 200L for the trolley type. For larger-scale operations, stand-type and floor -type models with capacities of 300L, 500L, 1000L, and 2000L are also available.

5. Efficient Heating Method: The electric heating method features a double-layer design, requiring water or conduction oil to be added to the jacket. This ensures even and consistent heating, maintaining the desired temperature throughout the melting process.

6. Temperature Control and Monitoring: The machine is equipped with two temperature sensors and indicators—one for the wax and one for the jacket—allowing for precise temperature control between 0-120°C (32-248°F). This ensures that the wax is melted and maintained at the optimal temperature for filling.

Technical Specifications

• Main Function: Jacket melting

• Melter Size: 100L (can hold at least 100kg of wax)

• Melter Material: Inner tank SUS304 (2mm thickness), Outer tank SUS201 (2mm thickness), Hinged lid SUS201

• Melter Type: Jacket heating

• Power Consumption: 6KW for the melter (2 heating bars, 3KW each), 220V 50Hz single phase or 110V 60Hz single phase

• Discharge: SUS316 bottom ball valve

• Overall Size: Appro ximately 113 x 70 x 100 cm

• Mixer Device: Speed adjustable on the control box

• Warranty: 1 Year

Pump Filler Specifications

• Function: Pumping, pump reversing, pump heating

• Material: Stainless steel 201 for the body, stainless steel 316 for the gear pump

• Control System: PLC touch screen

• Power Consumption: 220V 50Hz single phase or 110V 60Hz single phase, 300 W

• Filling Volume Range: 1-500g adjustable

• Pump Flow Rate: Max. 6L/m per pump, flow rate adjustable

• Pump Heating Temperature: 0-100°C adjustable

Operation and Ease of Use

The Trolley Type 100L Wax Melter Tank and Filling Machine is designed for ease of use and operation. The PLC control system provides a user-friendly interface, allowing operators to set and adjust parameters with ease. The operation steps are straightforward:

1. Add Water or Conduction Oil: Fill the jacket with water or conduction oil to the appropriate level.

2. Power On: Ensure the rotary switch is in the zero position before turning on the power.

3. Adjust Mixer Speed: Gradually increase the mixer speed to ensure even heat distribution.

4. Set Temperature: Use the PLC touch screen to set the desired melting and jacket temperatures.

5. Fill and Operate: Once the wax is melted, line up the jars and press the start button or use the remote controller to begin filling.

Maintenance and Durability

Dongguan Yide Machinery Co., Ltd. is committed to providing high-quality, durable machinery. The Trolley Type 100L Wax Melter Tank and Filling Machine is constructed with stainless steel 304, ensuring longevity and resistance to corrosion. Regular maintenance, such as ensuring good grounding, cleaning the PLC with a cotton cloth, and unplugging the machine during long periods of inactivity, will further extend its lifespan.

Conclusion

In the competitive world of candle manufacturing, having the right equipment can make all the difference. The Trolley Type 100L Wax Melter Tank and Filling Machine from Dongguan Yide Machinery Co., Ltd. offers a comprehensive, efficient , and user-friendly solution for melting and filling wax. With its advanced features, precise temperature control, and durable construction, this machine is poised to become a valuable asset in your production facility.

For more information or to place an order, please visit our website atwww.yidemachine.com（http://www.yidemachine.com）or contact us via email atsalecandlemachine@dgyide0769.com（mailto:salecandlemachine@dgyide0769.com）. Experience the future of candle manufacturing with Dongguan Yide Machinery Co., Ltd.
