1000L Electromagnetic Wax Melting Machine: A Comprehensive Guide for Efficient Wax Processing

For businesses in candle making, cosmetics, pharmaceuticals, or industrial wax processing, having reliable and efficient melting equipment is critical to streamlining production. The 1000L Wax Melting Machine from Dongguan Yide Machinery Co., Ltd. is engineered to meet these needs, leveraging advanced technology and user-centric design. Below is a detailed breakdown of its key features, operation, maintenance, and more, based on the official product documentation.

Core Technology: Fast, Efficient Heating

At the heart of this machine is electromagnetic induction heating—a standout feature that sets it apart from traditional heating methods. Unlike resistance heating, which wastes energy by heating surrounding air first, electromagnetic induction directly heats the metal of the melting tank. This technology enables two key benefits:

Rapid Heating & Drainage: The machine’s temperature range spans 0–150°C, and its integrated pumping system allows melted wax to be drained in just 5–10 minutes, significantly reducing pre-production wait times and keeping production lines moving .

Precise Temperature Control: Whether processing paraffin, beeswax, or specialty waxes, the digital control system lets users set and monitor temperatures accurately. This avoids overheating (which degrades wax quality) or under-melting (which clogs pipes), ensuring consistent liquid wax every time.

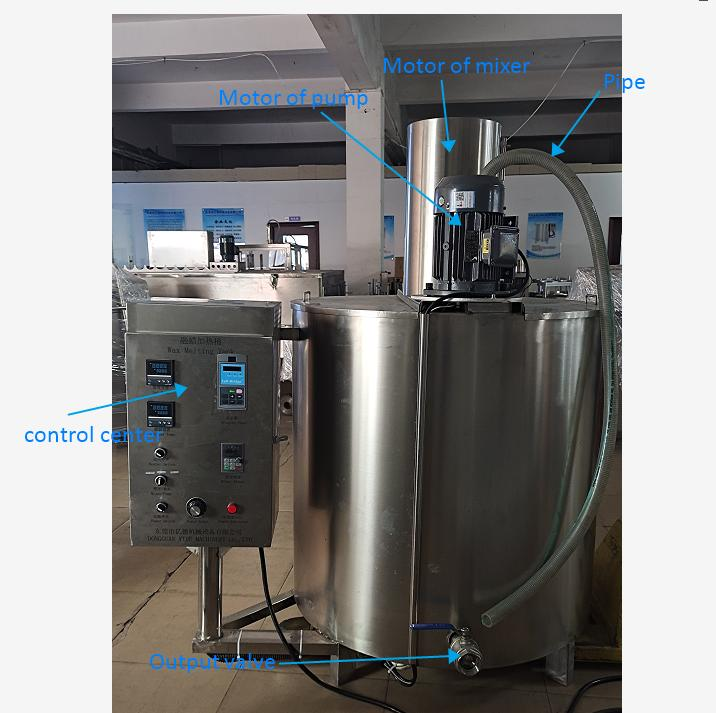

System Components: Durable & Functional

The machine’s components are designed for durability, ease of use, and seamless coordination. Each part plays a critical role in the melting process:

1000L Wax Melting Tank: The core vessel, built to withstand high temperatures and heavy wax loads. Its large 1000L capacity supports bulk processing, minimizing the number of batches needed per day and cutting downtime .

Mixer Motor: Equipped with speed adjustment (via the “Mixer Adjust” function on the control panel), it stirs wax to ensure even melting. A key safety note: the mixer must only be turned on after the wax has fully liquefied—starting it early will burn the motor .

Pump Motor: Powers the drainage and recirculation system, with a maximum speed of 1400r/m. This high speed is what enables the 5–10 minute drainage time, eliminating the need for manual scooping or slow gravity-fed flow .

Digital Control Center: The user-friendly hub of the machine, featuring a display panel for real-time temperature monitoring. It includes buttons for setting temperatures (“Set Temp” and “Set Wax Temp”), starting/stopping heating (“Heater Switch”), and controlling the mixer/pump (“Mixer/Pump”) .

Pipes & Output Valve: The package includes 3 meters of pipe, which connects the pump to reactors, molds, or storage tanks. The output valve allows precise control of wax flow, preventing spills and waste .

Technical Specifications: Global Compatibility

For international buyers, the machine’s specifications are tailored to work in diverse markets, with easy adaptability:

Power Supply: Operates on 380V 60Hz three-phase power. For regions using 220V three-phase (e.g., North America, parts of Europe), a transformer can be connected to adjust the voltage—no major modifications needed .

Power & Current: Has a maximum power of 31.5KW (powerful enough for fast melting while remaining energy-efficient) and a maximum current of 47.8A. To ensure safe, stable operation, a 10mm² cable is required for power connection .

Tank Size & Pump Speed: The 1000L tank is ideal for medium-to-large-scale production, while the 1400r/m max pump speed ensures quick, efficient wax transfer .

Step-by-Step Usage: Safe & Straightforward

Even for new operators, the machine’s operation is intuitive, with clear steps to avoid errors and ensure safety:

Power Connection: Connect the machine to an air switch using a 10mm² cable (critical for handling the 47.8A max current—using a smaller cable risks overheating or electrical hazards) .

Pipe Installation: Attach the included 3-meter pipe to the pump and your target equipment (reactors, molds, etc.). Double-check connections to prevent leaks .

Wax Loading: Add paraffin blocks (or your preferred wax type) into the 1000L tank. The tank’s design and the included ladder make loading easy, even for large batches .

Heating Setup: Turn on the power switch (via the “Power Switch” on the control panel), set the desired temperature using the “Set Temp” or “Set Wax Temp” functions, and activate heating with the “Heater Switch”. Remember: do not turn on the mixer yet .

Mixing Activation: Once the wax is fully melted and flows smoothly, turn on the mixer. Adjust the speed using the “Mixer Adjust” knob to match the wax’s viscosity (e.g., slower for thick beeswax, faster for thin paraffin) .

Wax Transfer: When ready to move the melted wax, use the “Mixer/Pump” button to select “Pump Out” (to send wax to your reactor) or “Pump Back” (to recirculate if needed). Press “Stop Pump” once the transfer is complete .

Maintenance & Safety: Extend Machine Lifespan

Proper maintenance ensures the machine operates reliably for years, with simple steps to prevent issues:

Grounding & Safety Switches: Always ensure the machine is securely connected to a ground wire and install an anti-creeping protection switch. These measures prevent electrical shocks and comply with workplace safety standards .

Long-Term Storage: If the machine will not be used for an extended period (e.g., seasonal lulls), unplug the power plug and drain all remaining wax from the tank and pipes. This prevents wax from hardening and clogging the system, saving time when restarting production .

Routine Checks: Periodically inspect the pipes for cracks, the mixer blades for wear, and the control panel for loose connections. Addressing small issues early avoids costly breakdowns later.

Packaging List & Warranty: Everything You Need

When you purchase the machine, the package includes all components required to start using it immediately:

1 x 1000L wax melting tank (integrated with mixer and pump)

3 meters of high-quality pipe

1 x ladder (for easy loading of wax into the tall tank)

1 x Warranty Card

For after-sales support, it’s critical to keep the invoice and Warranty Card safe—Dongguan Yide does not allow alterations to these documents, and no replacements are provided if they are lost. When repairs are needed, simply present the invoice and Warranty Card to access service .

Contact & Support

For inquiries about the machine, pricing, or technical support, you can reach Dongguan Yide Machinery Co., Ltd. directly via telephone: +86 0769 88389185. As a user, you can also rely on the company’s technical team for guidance on setup, troubleshooting, or maintenance.

Whether you’re scaling up production or replacing outdated equipment, the 1000L Wax Melting Machine from Dongguan Yide combines speed, precision, and durability—making it a valuable investment for any wax-related business.
