Scaling from manual or semi-automated pouring to a fully automated manufacturing system requires significant capital expenditure. Many growing brands hit an operational bottleneck quickly. Their manual output simply cannot match rising order volumes. Relying on hand-pouring limits your overall throughput and introduces costly human errors into your batches. We designed this guide to help you navigate these growing pains efficiently. It provides a realistic, vendor-neutral framework to evaluate integrated automation versus modular upgrades. Our scope focuses specifically on mid-to-high volume manufacturing environments. In these facilities, precision dosing, strict temperature control, and raw throughput determine your profitability. You will learn how to identify your true bottlenecks and assess component synergy. You will also discover the hidden downtime risks tied to machine cleaning and daily maintenance. Read on to build a clear equipment strategy and confidently scale your production floor.
Throughput vs. Flexibility: High-speed continuous lines maximize single-SKU output, while modular integrated systems offer better flexibility for frequent scent and wax changeovers.
Component Synergy: A true integrated system synchronizes the wax melter, mixer, and wax filling machine to prevent thermal shock and aeration.
Hidden Downtime: The primary differentiator between entry-level and enterprise models is the time required for line purging and cleaning between production runs.
Facility Alignment: Evaluating utility requirements (e.g., 3-phase power, pneumatic air supply, ventilation) is as critical as evaluating the machine itself.
Before you contact an equipment manufacturer, you must analyze your current production floor objectively. Scaling prematurely or buying the wrong type of machinery often creates more problems than it solves. You need to establish clear success criteria to guarantee your new equipment delivers measurable value.
Identifying the bottleneck: You must assess whether your current limitation is melting capacity, pouring speed, or cooling time. Many operators incorrectly assume they need faster pour nozzles. In reality, their melting tanks cannot liquefy wax fast enough to feed a high-speed line. Conversely, you might pour 2,000 units an hour but lack the ambient floor space for those vessels to cure properly. Pinpointing the exact restriction helps you avoid over-investing in the wrong production phase.
Setting quantifiable goals: Define your success through hard metrics rather than vague ambitions. Track units per hour (UPH) to understand your base output. Target a specific reduction in product reject rates. For example, manual pouring often leads to sinkholes or tunneling due to inconsistent pour temperatures. Automated dosing eliminates these human errors. You should also calculate expected labor cost reductions. Reassigning staff from repetitive pouring tasks to quality control or packaging often justifies the machinery investment.
Space and workflow mapping: Evaluate the physical footprint required for your new machinery. A linear, continuous configuration demands significant floor length to accommodate long cooling tunnels. If you operate in a cramped facility, batched workstation configurations might serve you better. You need to map out where raw materials enter, where the equipment sits, and how finished goods move to the packing area. Tight aisles create logistical nightmares once pallet jacks start moving heavy wax boxes.
Manufacturers generally face two paths when upgrading their facility. You can build a system piece by piece, or you can purchase a comprehensive, unified solution. Moving from manual pouring to a fully automated candle production line shifts how your entire factory operates. Understanding the nuances of each approach prevents buyer's remorse.
The modular method involves coupling an industrial wax melter with a standalone filler unit. You piece together different stations to create a custom workflow.
Pros: This approach requires a much lower initial capital expenditure. You can upgrade your melters this year and your fillers next year. It also makes isolating maintenance issues easier. If a nozzle clogs, your melting tanks remain entirely unaffected. This setup provides high flexibility for running small, custom batches.
Cons: Modular setups require manual transfer or complex third-party piping. Moving liquid wax between unlinked machines increases the risk of sudden temperature drops. These drops often lead to wax crystallization in the pipes or aeration in the final product. Your staff still needs to monitor multiple independent control panels.

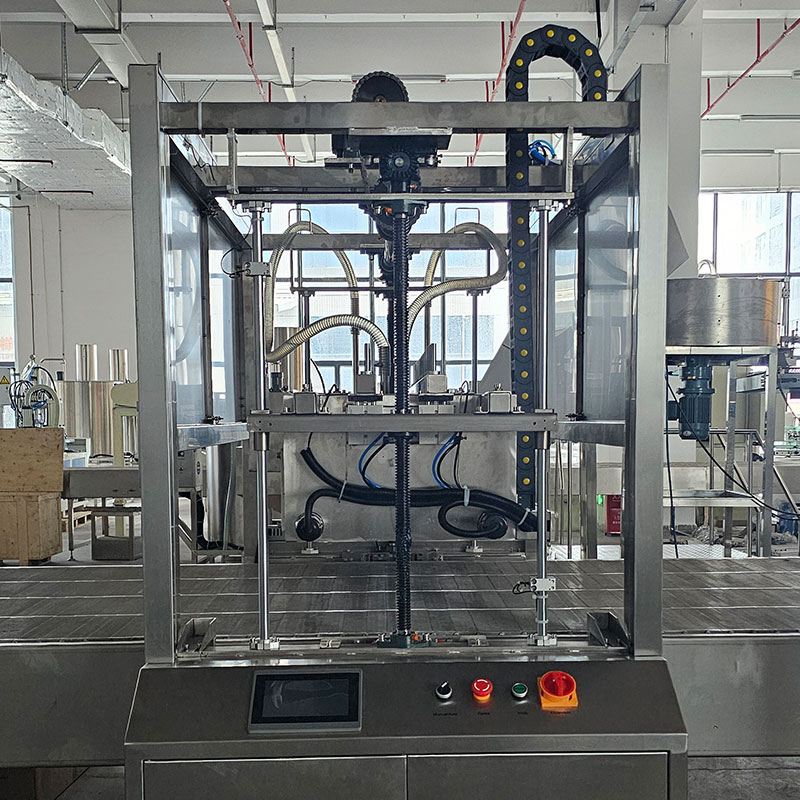

Integrated models combine melting, mixing, pumping, pouring, and cooling into one centrally controlled unit. A single Programmable Logic Controller (PLC) and Human-Machine Interface (HMI) manage the entire ecosystem.
Pros: These systems provide uninterrupted thermal management from the tank to the final vessel. They guarantee consistent pour volumes because the pump and melter communicate continuously. You drastically reduce manual handling, which lowers your labor overhead and improves workplace safety.
Cons: You will face a much higher upfront cost and need a larger, dedicated facility footprint. Furthermore, integrated systems present higher complexity during complete system purges. Changing a fragrance requires flushing the entire interconnected loop, which takes more time.
Executing a thorough candle making machine comparison requires looking past the marketing brochures. You need to analyze the internal mechanics. The wrong internal components will ruin delicate wax blends and stall your production.
Consistent temperature dictates the visual quality of your finished product. You must compare water-jacketed heating against thermal fluid (oil) heating. Water-jacketed systems work well for standard operations but max out at lower temperatures. Thermal oil heating maintains highly precise temperatures without fluctuating. This precision prevents scorching when you process delicate soy or beeswax blends. Burnt wax alters the throw of your carefully formulated fragrance oils.
The core of any dependable wax filling machine is its internal pumping system. You will typically choose between gear pumps and piston pumps.
Pump Technology Comparison: Gear vs. Piston Fillers
Feature | Gear Pumps | Piston / Cylinder Pumps |
|---|---|---|
Ideal Application | High-volume, continuous flow lines | High-precision, exact volumetric dosing |
Viscosity Handling | Excellent for thick, heavily fragranced blends | Better suited for standard, fluid waxes |
Maintenance Profile | Fewer moving parts, simpler to clean | Requires regular seal replacements |
Dosing Consistency | Good, but can drift over long shifts | Exceptional accuracy per individual pour |
You must assess how the main control unit communicates with other factory equipment. A top-tier machine integrates seamlessly with automated wicking stations, continuous cooling tunnels, and inline capping machines. If the PLC cannot send basic start/stop signals to downstream equipment, you will experience severe bottlenecks during minor jams.
Different waxes behave differently under pressure. Verify the equipment's documented ability to handle your specific formulas. Heavily fragranced loads or high-viscosity vegetable wax blends often clog standard nozzle manifolds. You need machinery engineered to push dense, viscous fluids without straining the motor or blowing internal seals.
Buying the equipment is only the first step. Operating it daily introduces a new set of challenges. Managing changeovers, replacing worn parts, and mitigating operational risks require strict internal protocols. Overlooking these implementation realities leads to unexpected downtime.
Cross-contamination ruins product runs. You must examine the realities of changing fragrances mid-shift. Look for equipment featuring easily detachable nozzles and self-draining pipes. Clean-in-place (CIP) protocols save countless hours. A system that flushes hot water or solvent automatically requires far less manual scrubbing. Always ask vendors exactly how many minutes a full line purge takes.
Industrial machinery consumes parts regularly. You need to factor in the replacement frequency of basic wear items. O-rings degrade when exposed to harsh fragrance oils. Pump seals wear down over time. Heating elements eventually burn out. Keep a strict inventory of these consumables on your factory floor to avoid shutting down production over a cheap rubber gasket.
Automated fillers require periodic recalibration. You cannot simply set the machine once and forget it. Ambient temperature shifts in your factory alter the density of the wax. Variations between raw material batches also impact flow rates. Your operators must perform spot-checks and recalibrate the dosing software routinely to ensure every jar receives the exact stated volume.
Protect your investment by establishing strong vendor relationships. Demand transparent service level agreements (SLAs) before signing purchase orders. You need guaranteed response times for technical support.
Secure a domestic supply chain for critical replacement parts.
Establish preventative maintenance schedules with your floor managers.
Cross-train multiple employees on the HMI panel to avoid reliance on a single operator.
Narrowing down your equipment choices requires a methodical approach. Do not rely solely on sales presentations. You must verify that the machinery meets strict industrial standards and performs flawlessly under your unique operating conditions.
Safety must remain your top priority. You are handling heated, flammable materials. Fragrance oils possess low flash points, making electrical safety critical. Ensure the equipment meets regional industrial safety certifications. Look for CE marks, UL listings, and full OSHA compliance. Operating non-compliant machinery exposes your business to massive liability and potential facility fires.
Never buy complex machinery without seeing it run your exact formula. Request video evidence or a live demonstration of the unit in action. Insist the vendor runs your specific wax blend and fragrance load. Generic paraffin flows beautifully through almost any pump. However, sticky coconut blends or dense soy waxes expose weak motors and poor thermal management quickly. A successful Proof of Concept proves the machine handles your actual daily workload.
Finding the ideal integrated equipment requires balancing speed, flexibility, and facility limits. The best machine is rarely universally the fastest one on the market. Instead, it is the system that best aligns with your specific catalog variety and operational footprint. A high-speed line does nothing but cause headaches if you run fifty different small-batch scents a week.
We highly recommend establishing a weighted scoring matrix before you initiate final vendor negotiations. Rank each machine based on price, raw throughput, ease of cleaning, and the reliability of vendor support. Assign points based on your unique bottleneck. If changeovers kill your margin, weight the cleaning time heavily.
Take action today by mapping your factory floor and consulting with an integration engineer. Request detailed technical specifications and facility requirement documents from your shortlisted manufacturers. By demanding proof of concept and prioritizing component synergy, you will build a resilient, highly profitable manufacturing operation.
A: Yes, but transitioning successfully requires highly programmable temperature profiles. Natural waxes demand lower holding temperatures and distinct cooling curves. If you fail to adjust these parameters, you will experience severe frosting or poor glass adhesion. Always ensure your PLC allows you to save custom recipes for different wax types.
A: Changeover duration varies drastically based on the machine's internal design. A full purge and flush might take 30 minutes on simpler modular systems. However, on complex, multi-head continuous lines, cleaning out every pipe and manifold can easily exceed 2 hours. Prioritize self-draining designs if you change scents frequently.
A: Most industrial equipment, particularly automated wicking stations and pneumatic piston fillers, rely heavily on air cylinders. You will absolutely require a dedicated, clean, and dry compressed air supply at your facility. Moisture in your air lines will quickly rust internal pneumatic valves and cause system failures.
A: For operations scaling from 500 to 5,000+ units per day, operators typically achieve a full return on investment in 12 to 18 months. This rapid ROI stems directly from drastically reduced labor hours, fewer rejected units, and decreased raw material waste through precise, automated volumetric dosing.
