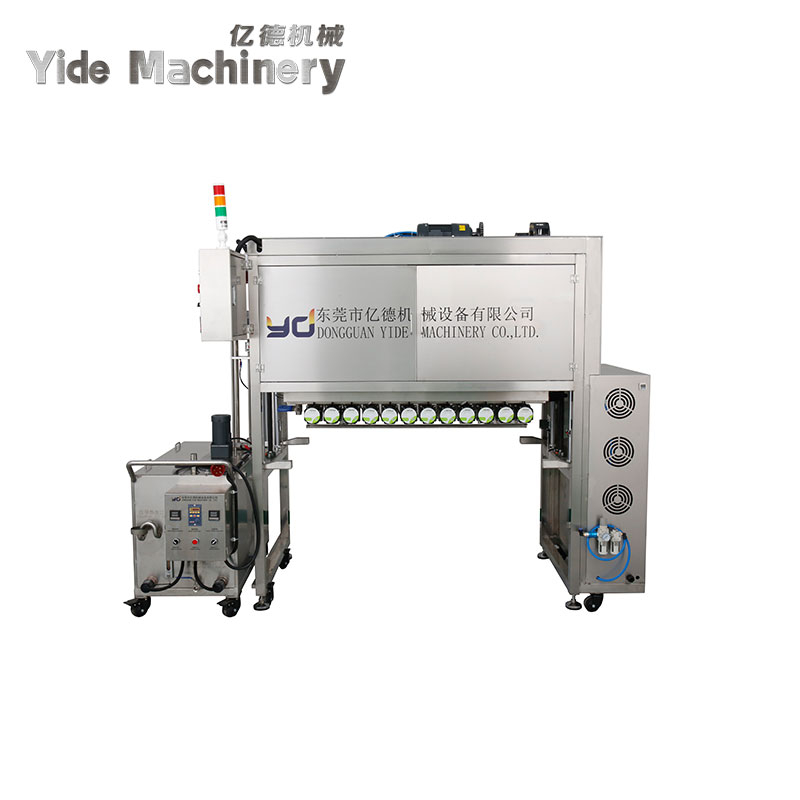

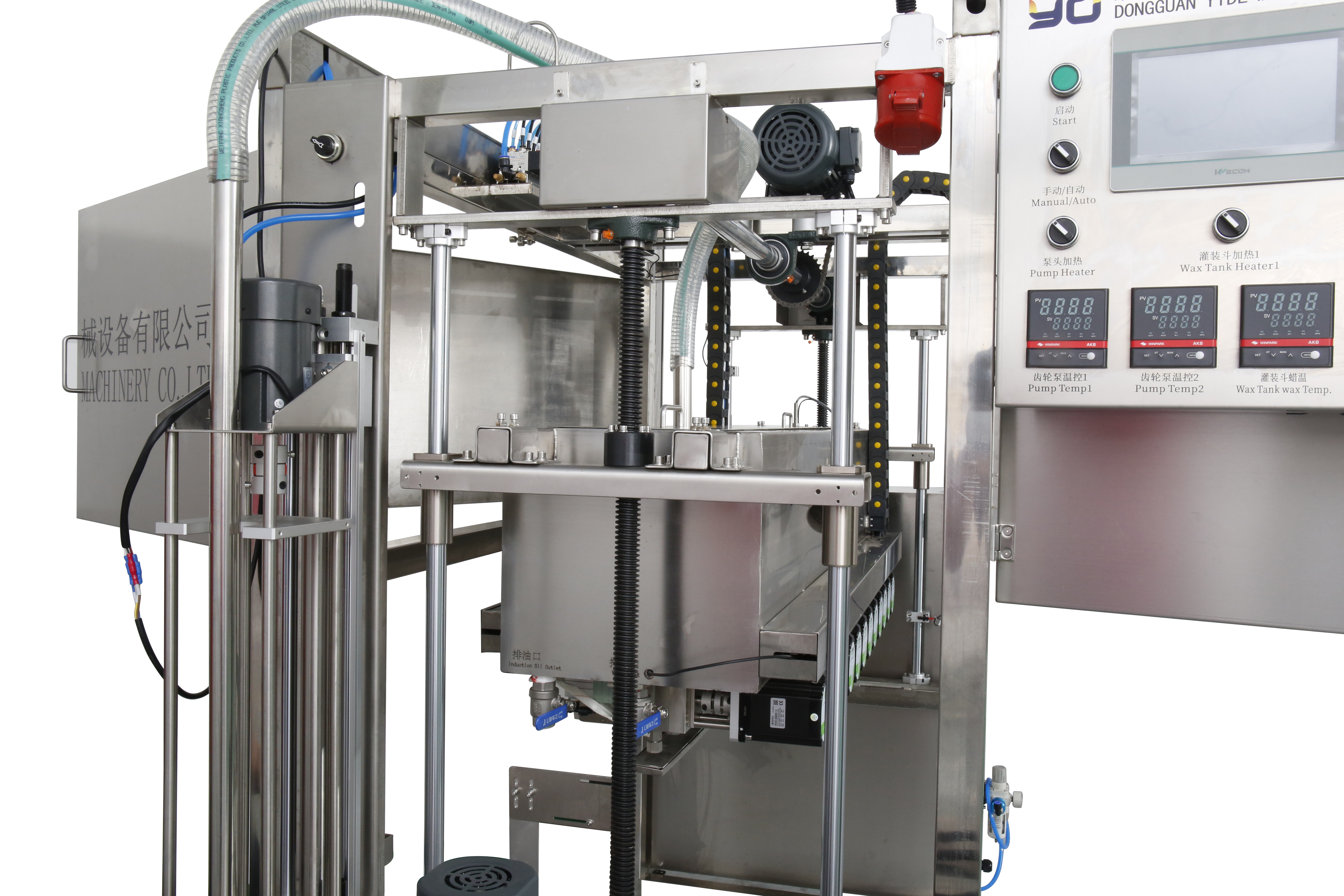

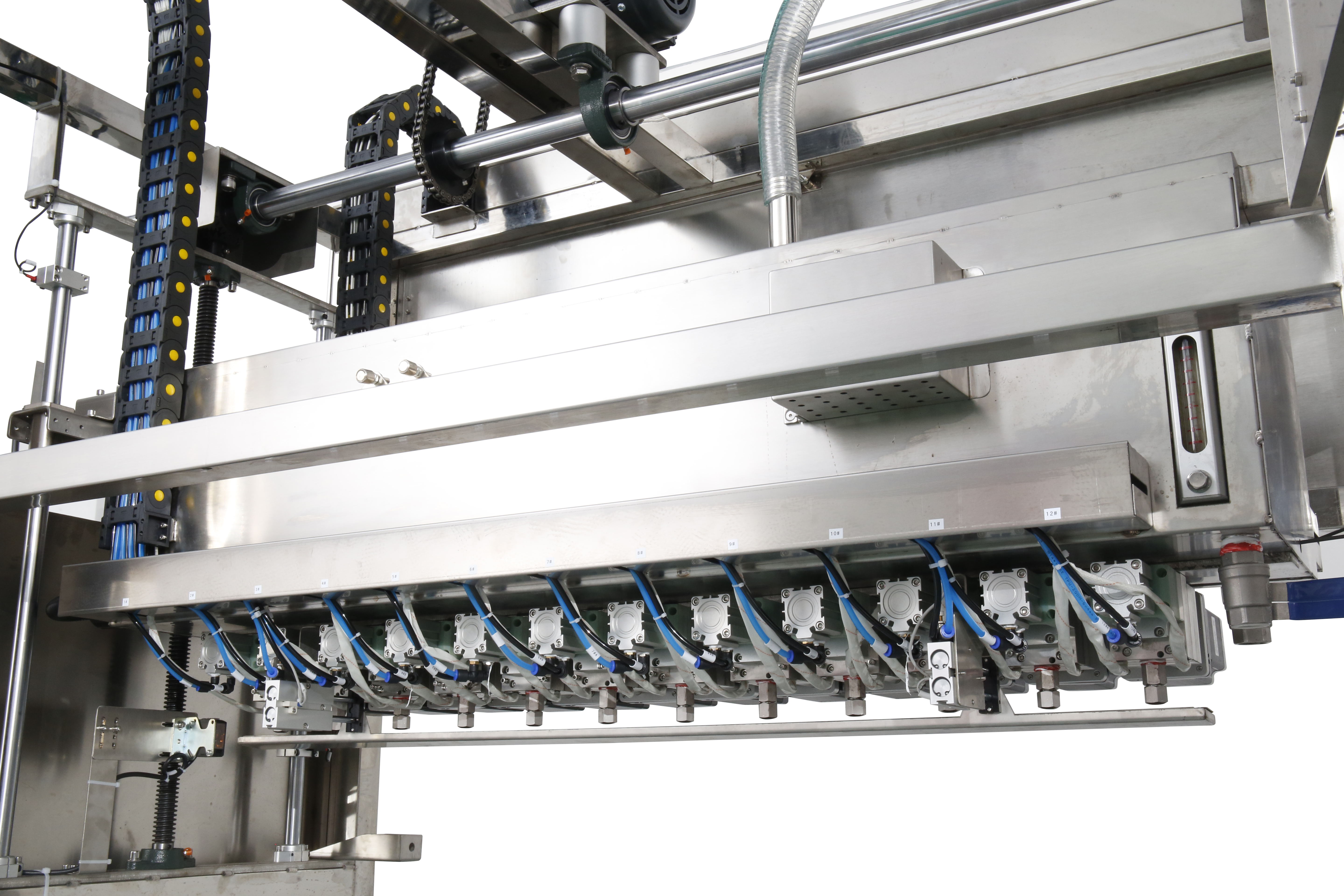

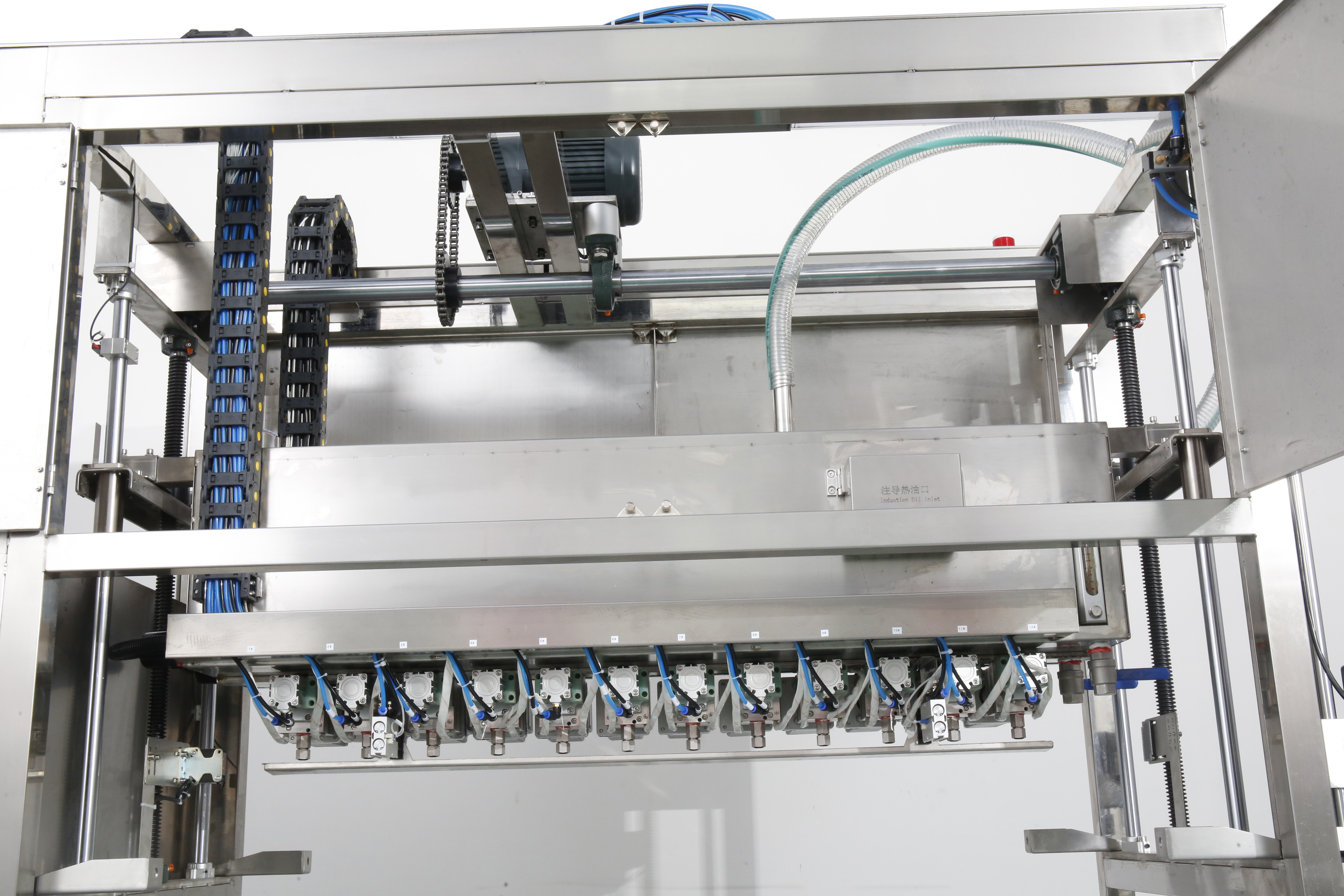

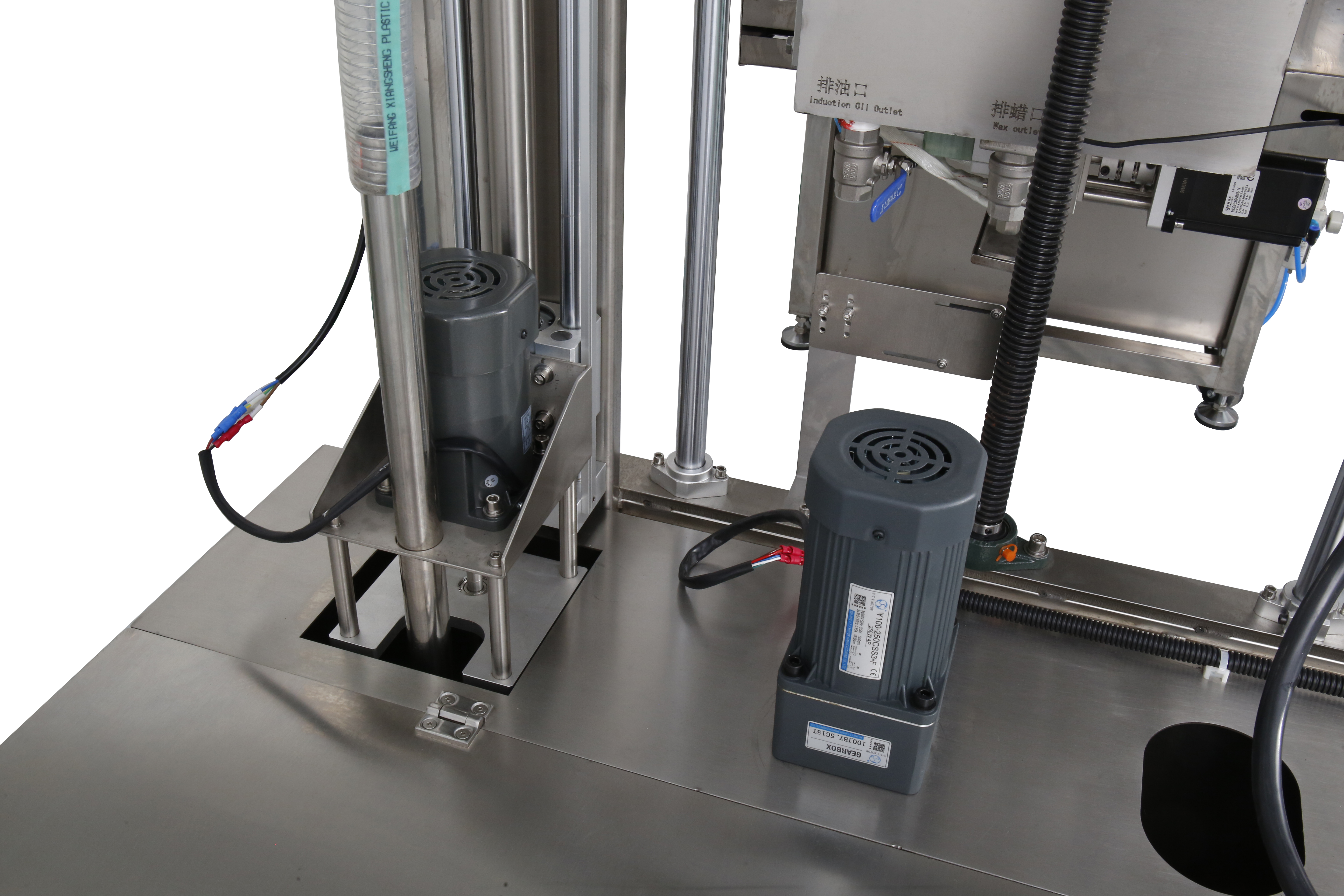

Factory New Design Stainless Steel 12 Heads Water Filling Station Electric Automatic Candle Making Equipment
Share to:
Quantity:
Product Advantage

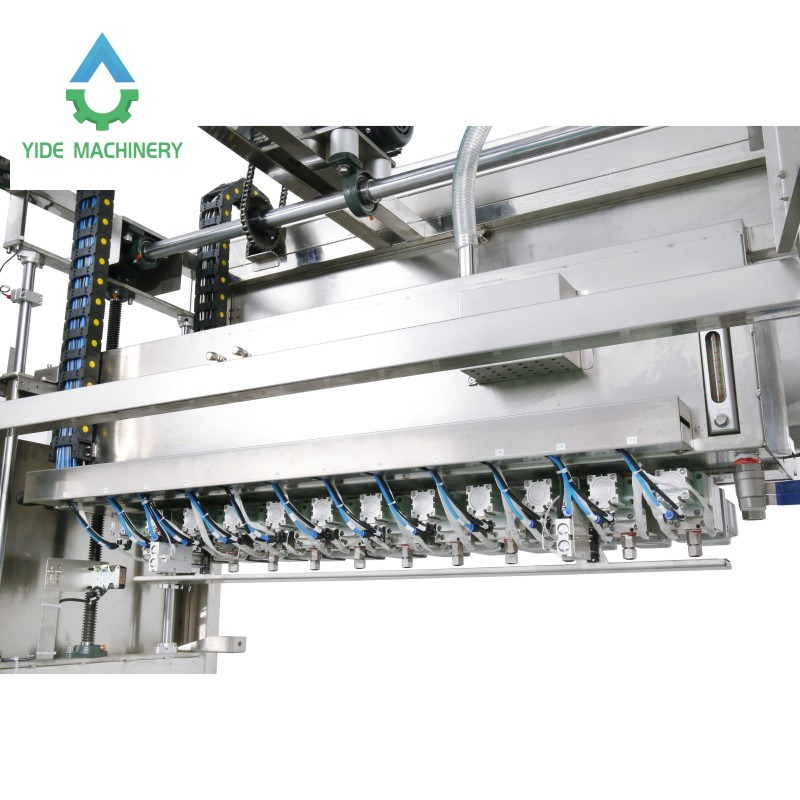

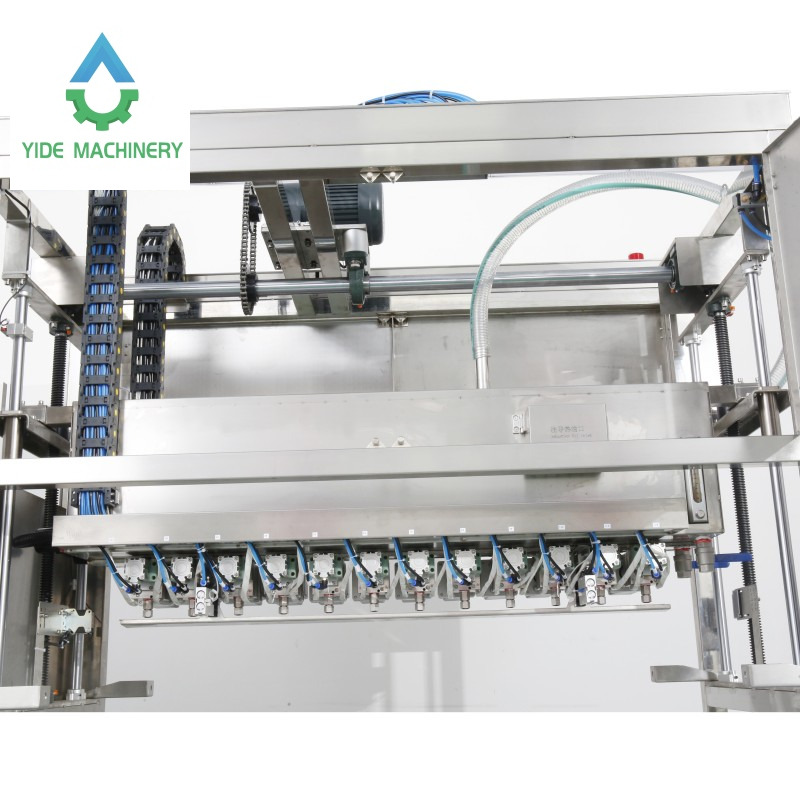

1. **12-Nozzle Synchronous Operation for Ultra-High Efficiency**
As a professional filling system, it adopts advanced filing with 12 independent servo-driven nozzles. It achieves 2000-3000 candles per hour (based on 100ml capacity), 3x more efficient than 4-head models. This meets large-scale production needs, cutting production cycle for 10,000-candle orders by 40%.

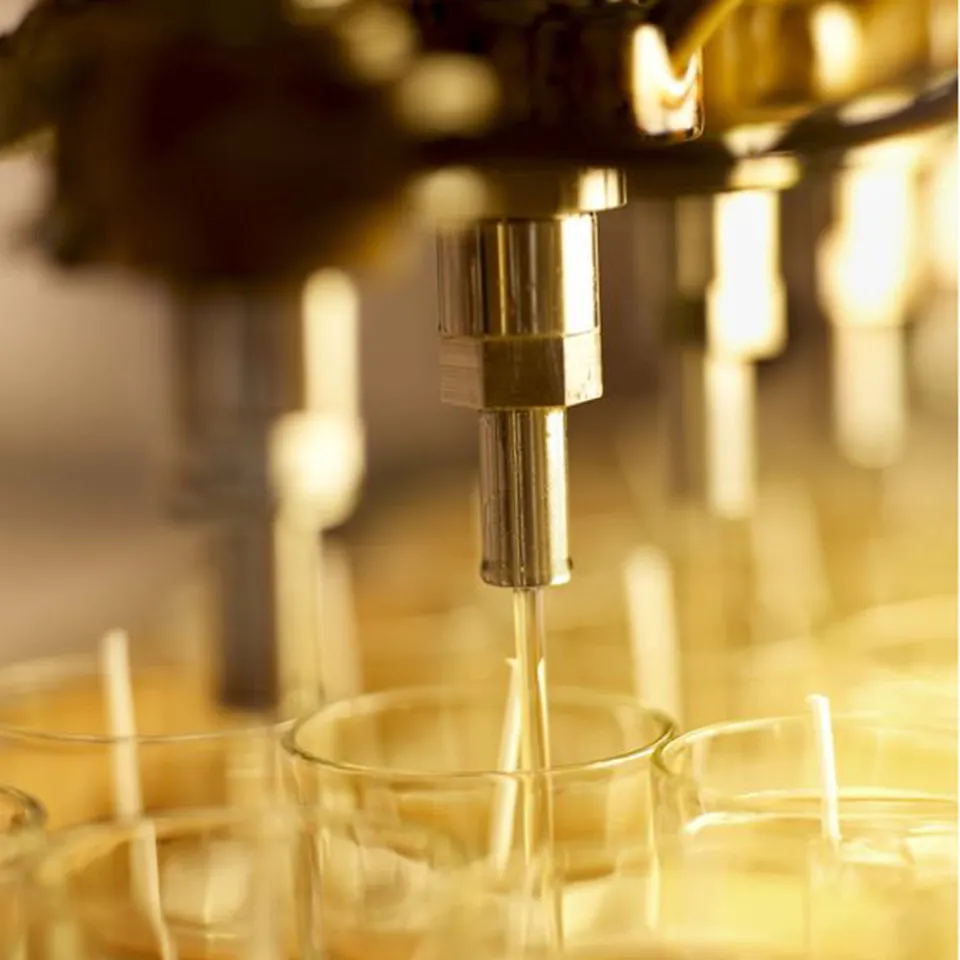

2. **Micron-Level Pouring Accuracy to Ensure Uniform Quality**
Equipped with high-precision flow meters and PLC intelligent control, the system maintains a pouring accuracy of ≤±0.3%. Even for 50ml mini candles or 500ml large jar candles, volume deviation per unit is less than 0.15ml. This reduces raw material waste by 12% yearly and lowers defective rate to below 1.5%.

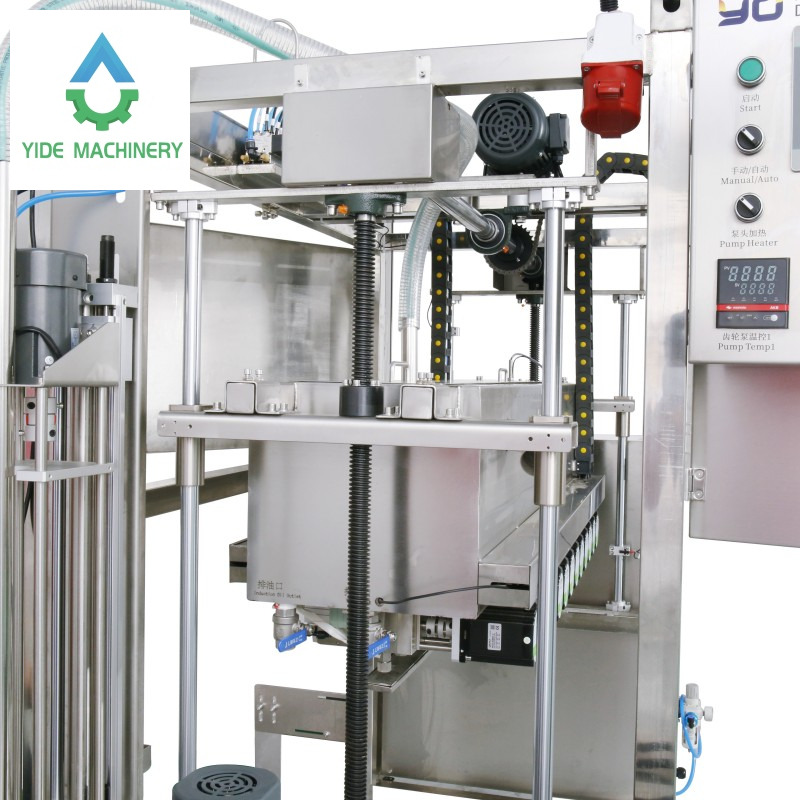

3. **Dual-Layer Constant Temperature to Protect Wax & Fragrance**
It has a dual-layer temperature control system: 60-80℃ (adjustable in 0.5℃ increments) for wax melting, and 55-70℃ for pipeline heat preservation. Temperature error is ≤±0.2℃, preventing wax crystallization or essential oil volatilization. Aroma retention rate of finished candles is increased by 25% compared to ordinary systems.
4. **One-Click Auto-Cleaning to Save Maintenance Time**
The system has a built-in CIP (Clean-In-Place) auto-cleaning function. After production, select the cleaning program, and it automatically flushes pipelines and nozzles with hot water or cleaning agents. Cleaning time is shortened to 15 minutes (30% faster than manual cleaning), reducing downtime and labor costs.
5. **Wide Compatibility with Multiple Wax Bases & Candle Types**
It supports soy wax, beeswax, coconut wax, and blended waxes. With replaceable nozzles (round, flat, narrow-mouth), it adapts to jar candles, tin candles, pillar candles, etc. Nozzle replacement takes only 2-3 minutes, meeting diverse production needs of aromatherapy candle manufacturers.
6. **Intelligent Linkage with Production Lines**
The system has RS485 communication interface, which can be linked with upstream wax melting tanks and downstream cooling conveyors. It realizes automatic material feeding, pouring, and conveying, reducing manual intervention by 60%. It also has fault alarm function, which sends alerts for abnormal temperature or pressure, ensuring stable production.
Technical Parameters
Parameters
Details
Voltage
380V 50Hz (Three-phase)/480V 60HZ (Three -phases)
Power
Approximately 35kW (varies according to actual operation conditions and configurations)
Current
55A
Filling Range
1-5000g
Filling Accuracy
±1g
Filling Nozzle
12 Pumps
Motor
Step motor
Function
Filling
Match
150L transport melting tank
Product Video
FAQ
1. **Q: Why do some nozzles pour unevenly?**
A: Check if nozzles are clogged or mismatched with candle type. Clean blocked nozzles via the auto-clean function; replace with correct nozzles. Refer to the PDF for nozzle replacement steps to restore uniformity.
2. **Q: How to fix unstable wax temperature?**
A: First, confirm the dual-layer temp system is on. If error exceeds ±0.2℃, recalibrate via the PLC panel as guided in the PDF. Ensure the melting tank is not overfilled to avoid temp fluctuations.
3. **Q: Why fails the auto-cleaning function?**
A: Check if the cleaning agent/water supply is sufficient. If still faulty, reset the system and retry. The PDF lists common fault codes—find the corresponding solution to fix the issue quickly.
4. **Q: How to improve aroma retention of candles?**
A: Keep wax melting temp at 65-75℃ (avoid overheating) and pipeline temp at 60-65℃. Add essential oils at the right time per the PDF’s mixing guide to prevent aroma volatilization.
