Introduction to Wax Warming with Filling Machine

Introduction

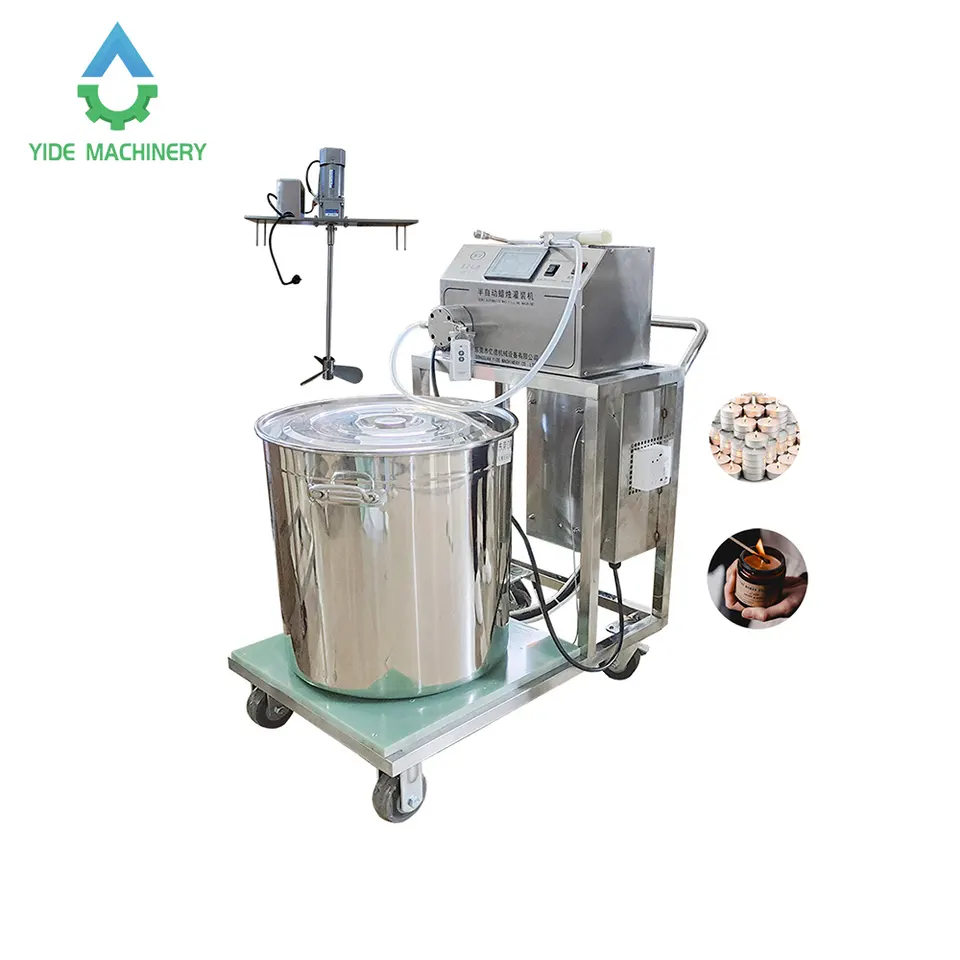

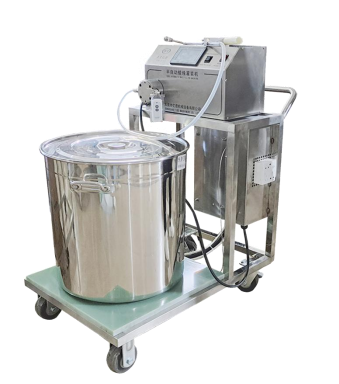

Trolley cart electromagnetic heater for 60L filling tank to easily change color and fragrance, whole set can be move and take small production place.

The tank is economic type and suitable for melting soy wax, beewax and jelly wax etc.

Equip with filling machine to be a complete set to be multi function and high efficiency.

Compositions

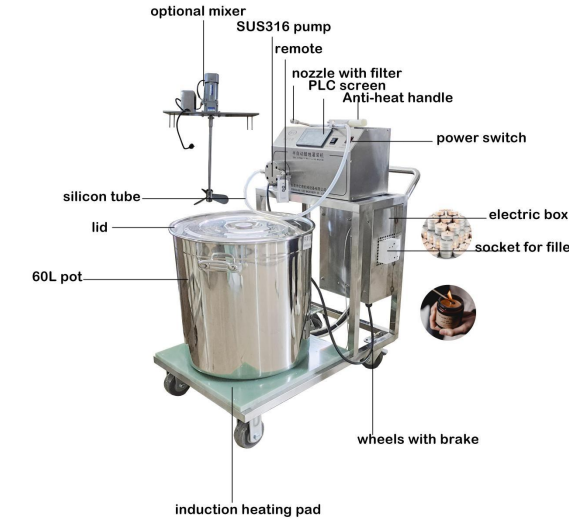

The core components of this wax melting and filling machine are designed around the entire "wax melting - conveying - filling - control" process, balancing practicality and durability. They specifically include:

Core functional components: A 60L wax melting tank (model YD-60L), a SUS316 pump body (corrosion-resistant and suitable for wax properties), a filling nozzle with a filter (prevents clogging by impurities and ensures clean filling), and an induction heating pad (enables efficient heating and stable temperature control).

Control and operation components: A PLC operation screen (supports Chinese-English switching and includes multiple interfaces such as operation, manual control, and parameter setting), a wireless remote controller (for convenient operation without the need to be close to the machine), universal wheels with brakes (facilitates machine movement and fixing), and heat-resistant handles (ensures operational safety).

Auxiliary connection components: A 3-meter silicone tube (suitable for wax conveying and high-temperature resistant), a black power cord, a dedicated socket for the filling machine, and an optional mixer (improves wax mixing uniformity as needed).

How to Fill

Follow these 8 steps to complete the standardized operation of the wax melting and filling machine, ensuring accurate filling and stable equipment performance:

Connect pipelines: Connect the input hose and output hose to the pump body respectively, clearly identifying the "inlet" and "outlet" for wax, and ensure the heating element is properly connected to the pump body.

Install the nozzle: Attach the filling nozzle with a filter to the end of the output hose, and check if the connection is sealed to prevent wax leakage.

Add medium: Pour water or heat transfer oil into the wax melting tank (direct heating of an empty tank is not allowed) to provide a uniform heat-conducting environment for wax melting.

Connect power: Connect to AC 220V/50Hz or 110V/60Hz power supply (must match the machine's voltage parameters), and confirm the power switch is in the "off" position before powering on.

Test the equipment: First, use oil (not wax) to test the conveying and filling functions of the machine, checking for pipeline clogging and normal pump operation.

Set parameters: Use the PLC operation screen to set the filling volume (adjustable from 1g to 2000g) and interval time (pause time between two filling cycles) to appropriate values based on production requirements.

Calibrate accuracy: Prepare a scale with an accuracy of 0.01g, set the quantitative pulse to 10000, test the pump with a 200g filling volume as the standard, and enter the actual filling volume into the "quantitative calibration" interface to ensure the accuracy is controlled within ±0.5g.

Start formal filling: After calibration, pour in the wax and start the machine. Trigger filling via the wireless remote controller or manual button, observe the filling effect in real-time, and repeat steps 6-7 if adjustments are needed.

Sell Point

The reason this wax melting and filling machine becomes a preferred choice in candle production lies in its core advantages centered on the four dimensions of "efficiency, precision, safety, and peace of mind":

Efficient production, adapting to diverse needs: With a productivity of 10-100 pieces per minute and a filling volume range of 1g-2000g, it can meet the needs of both small handcrafted candles and batch-produced standard candles. The double-nozzle design (for some models) allows simultaneous filling, further improving efficiency.

Precise control, ensuring product consistency: Equipped with a PLC control system, Quantitative Pump 1 and Quantitative Pump 2 can independently set filling volumes. Combined with the calibration function, the accuracy is stably controlled within ±0.5g. The temperature control screen supports setting target temperatures such as 70℃, ensuring the wax temperature is stably above 75℃ (to maintain fluidity) and avoiding filling deviations caused by temperature fluctuations.

Safety design, reducing operational risks: It is equipped with heat-resistant handles, universal wheels with brakes (preventing machine sliding), grounding protection, and an anti-leakage switch. Meanwhile, operational guidelines such as "no heating of empty tanks" and "no disassembly or modification of switches when powered on" are clearly specified, providing double protection for safety from both design and process aspects.

Worry-free after-sales service, minimizing usage concerns: Mechanical parts come with a 1-year warranty, and electrical parts with a 6-month warranty (operation in accordance with the instruction manual is required). A complete packaging list (including 1 set of accessories such as the machine, wax melting tank, and nozzle) is provided at delivery. The after-sales hotline 18681167628 can respond to issues promptly, and product certificates and warranty cards are also provided, ensuring a basis for subsequent maintenance.

Conclusion

Whether you are a handcraft candle enthusiast looking to improve production efficiency or a small candle enterprise in need of optimizing the production process, the Wax Melting and Dispensing Machine can become a key equipment to enhance the production experience with its features of "full-process adaptation, high-precision control, and safe and easy operation". It not only simplifies the complex steps of wax melting and filling but also lowers the threshold for candle production through its stable performance and thoughtful after-sales service, making every filling process accurate and efficient, and helping to produce more high-quality candle products.
